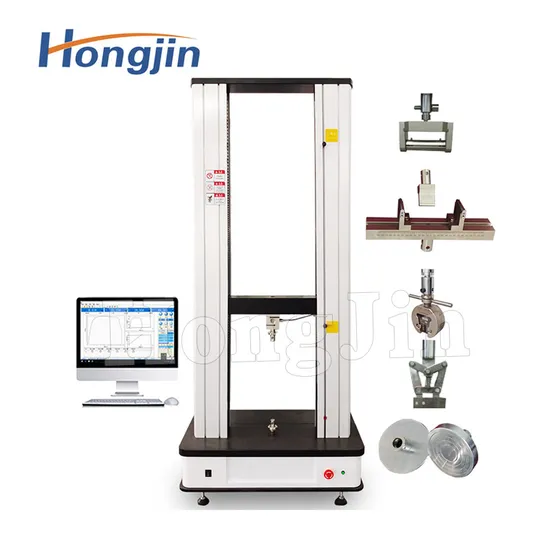

Double Column Electronic Tensile Testing Machine Universal Testing Machine

Product Description

Scope of application:
Double column tensile testing machine, Mainly applicable to the testing of metal and non-metal materials, such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, leather belt composite material, plastic profiles, waterproof coils, steel pipes, copper, profiles, spring steel, bearing steel, stainless steel (and other high hardness steel), casting, steel plate, steel belt, non-ferrous metal wire stretching, compression, bending, cutting Cutting, stripping, tearing, two-point extension (need to be equipped with an extensometer) and other tests.
Meet the standard:
The machine fully meets the requirements of the national standard GB/T228-2002 "Tensile test method for metal materials at room temperature", and can be tested and data processed according to GB, ISO, JIS, ASTM, DIN and a variety of standards provided by users, and has good scalability. ASTMDINJISBSGB/T528-1998 /T529-1999.
Product parameters:

est item	Power and selective elongation	display		Visualizzazione per PC
Unit of force	Kg, N, Lb, and g	Extension unit		mm, cm, in %
Capacity selection	1. 2. 5. 10, 20, 50, 100, 200, 500kg, 1000kg, 2000kg, 5000kg, 10000kg
Load element accuracy	Less than 0.5%	Force resolution		1/100000
Test maximum stroke	The maximum is 1200mm excluding the fixture	Effective test space		Diameter range 400mm
Test speed	0.1-1 000mm/min can be adjusted arbitrarily
Stop mode	Upper and lower limit safety setting, emergency stop key, program force and elongation setting and test piece breakpoint sensing
Equip with	Standard preparation fixture set, use help book and product warranty card each
power	De DC motor
Standard arrangement	Computer connection equipment (1 signal cable, 1 decryption lock, 1 program CD)
