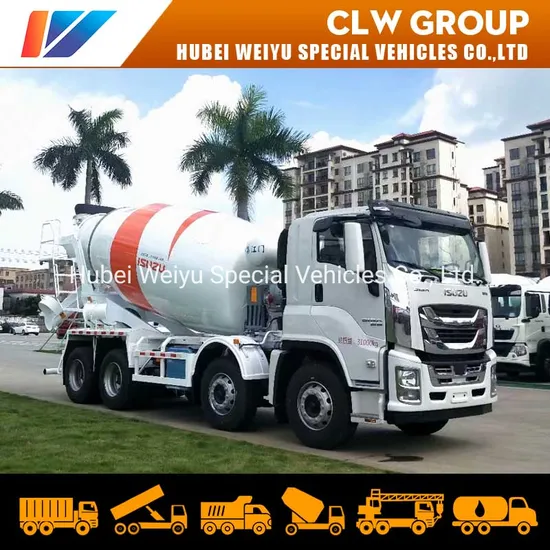

Japanese I Suzu Giga 8X4 Concrete Mixer Truck 15cbm 10cbm 12cbm Cement Mixer Truck
| US$65,980.00-75,499.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW9150JBC
Transmission Type
Manual
Emission Standard
Euro 5/Euro 6
Displacement
10000ml
Payload
30T
Fuel
Diesel
Drive Mode
8x4
Maximum Horsepower
300-400hp
Condition
New
Chassis Brand
I Suzu
Mixer Drum Capacity
15cbm
Drum Material
High Strength Steel Q345
Hydraulic Pump
Eaton, Sauer or Chinese Famous Brand
Hydraulic Motor
Eaton, Sauer or Chinese Famous Brand
Reducer
Bonfiglioli or Chinese Famous Brand
Logo or Pattern
as Per Customer′s Request
Color
Customized
Logo
Customized
Transport Package
RO-RO Ship, Bulk Ship, Container
Specification
10850*2500*3950 mm
Trademark
CLW
Origin
Suizhou, China
HS Code
87059099
Production Capacity
500unit/Month
Product Description
I SUZU GIGA 8X4 Concrete Mixer Truck 15CBM 10CBM 12CBM Cement Mixer TruckProduct Description
1. Chassis: International famous brand I SUZU
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
| Chassis | Brand | I SUZU | |||||
| Dimensions(mm) | 10850×2500×3950mm | ||||||
| Max. driving speed(km/h) | 90 km/h | ||||||
| Brake | Air brake | ||||||
| Tire | Number | 12pcs with one spare tire | |||||
| Specifications | 11.00R20 | ||||||
| Transmission | 9 Forwards and 1 Reverse with PTO | ||||||
| Cabin | It can accommodate three people, With Air conditioner | ||||||
| Horsepower | 350HP | ||||||
| Mixer drum | Max. Capacity | 15.0/16.0/18.0 cbm | |||||
| Material | Q345, 5mm thickness | ||||||
| Vane | Material | Q345, 5mm thickness | |||||
| Specification | Feeding Speed (m3/min) | ≥2.8 | |||||
| Discharging Speed (m3/min) | ≥1.2 | ||||||
| Discharging Residual rate(%) | ≤0.5 | ||||||
| Mixing Tank Rotating Speed (RPM) | 0-17 | ||||||
| Discharging range | 180° full range | ||||||
| Driving system | Option | Option 1 | Option 2 | Option 3 | |||
| Hydraulic Pump | US EATON 5423 | SAUER 75 | SUNNY 56 | ||||
| Hydraulic Motor | US EATON 5433 | SAUER | SUNNY 63 | ||||
| Reducer | Germany ZF4300 brand | Italy Bonfiglioli | China local brand | ||||
| Radiator | China local brand | ||||||
| Water supply system | Water Tank Capacity (liters) | 400 | |||||
| Water supply type | Pneumatic water supply | ||||||
| Control system | Control Way | Connecting Rod Controlling | |||||
| Structure Features | Mixer Tank and Vane use special anti-resistant material. Discharging slot and feeding plate are the same anti-resistant material as the tank. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable. With famous brand driving system. Discharging fast, no residue. | ||||||
| Remarks | The color is optional | ||||||
Reference Photos
Main Structure Diagram
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Contact Jacky for more details
Hubei Chengli Special Automobile Co., Ltd
Hubei Weiyu Special Vehicles Co.,Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 2614-2615, Block B, Longyang Time Square, Hanyang District, Wuhan, China
Web: trucken.en.made-in-china.com
