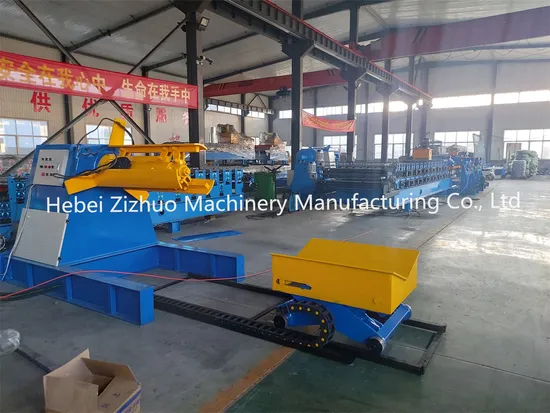

Serbia C13-C16 Double Layer Roofing Sheet Roll Forming Machine Production Line

Product Description

Europe Russian C13-C16 Double layer roofing Sheet Roll Forming Machine Production Line Product Parameters

No.	Item		Parameter	Remark
1	Suitable material	Type	Color steel, galvanized steel
		Thickness(mm)	0.35-0.7mm	Test material standard 0.45mm
		Yield strength (Mpa)	≤300mm
		Width (mm)	About 1250mm
2	Forming speed		About 15-20 m/m	Not include cutting time
3	Motor of forming system (kw)		5.5kw	Depends on final design
4	Hydraulic station power(kw)		4kw	Depends on final design
5	Voltage requirements		AC380V, 50Hz, 3phase	According to the customer's request
6	Roller material		#45 steel with heat treatment 58-62 degrees
7	Shaft diameter		70mm solid
8	Control system		PLC with touchscreen	Delta brand

Detailed Photos

5Ton automatic decoiler with lifting car
Power:4kw
Pump:3kw
Capacity: 5000kgs
Machine weight:1900kgs

Feeding table with electric pre-cut, when a customer wants to change the production line, the pre-cut can cut the material easily, saving cost.
The roller and shafts are high-precision, solid shafts, and the finished product keeps an error of less than 2mm
The guide column type hydraulic shear is more stable, and the blade material is Cr12
Delta PLC control system, touch screen, easy operate
The hydraulic pump station, when a customer wants to run the machine, please fill in 2/3 hydraulic oil.
Automatic stacker, 6 meters in length.
Upper later down layer adjustable, automatic pull out.



Packaging & Shipping
Exhibition and customers
Why choose us
1. Unique coil processing solutions for metalworking?
Hebei Zizhuo Machinery Manufacturing Co., Ltd is aimed at providing our customers with the best quality metal rolling automation solutions and after-sales service. 2. Equipment research and developing Our company commits to providing customized coil processing solutions according to each customer's specific metalworking process. With an experienced technical team and continuous research investment, we are capable of offering coil handling solutions that meet higher international standards. 3. Manufacturing quality control With precision machine tools and skilled workers, from spare parts preparation to equipment assembly, our machine can offer real-time manufacturing updates for our valued customers.
From raw material control, spare parts inspection, and machine assembly, our factory implements a strict quality control process. We commit to offering coil performance.
ll work is just for making sure all the products of machines are qualified.
