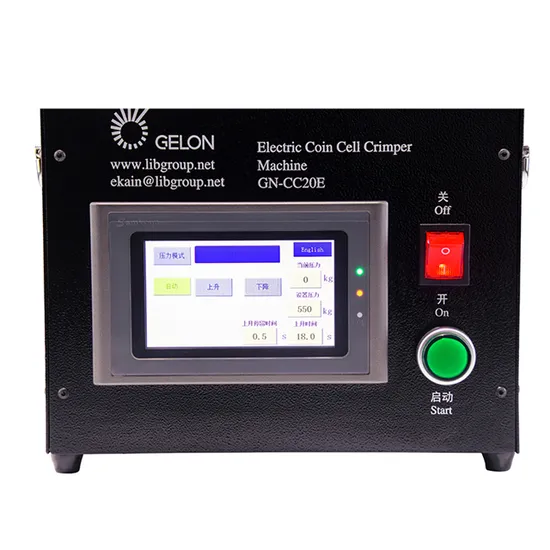

Gelon Laboratory Electric Coin Cell Crimping Machine

Product Description

Product Description GELON Laboratory Electric Coin Cell Crimping Machine 1. Equipment Introduction This equipment is mainly used for button battery sealing and button battery disassembly. This equipment can only choose one (sealing/disassembling) mold as standard. It is mainly driven by motor. After putting the battery into the mold, start the motor button , The upper and lower molds are automatically closed, and the battery is sealed and formed. It is used in the production of samples for the research and development of battery materials in the laboratory, and the research and sealing of button batteries and capacitors. It can also be used for small batch trial production in factories. Dies with different configurations can also be used for dry powder tableting, wet powder tableting, foam nickel pressing, pressing molding, riveting and other operations. 2. Equipment Features 1. Touch screen operation, easy parameter setting and high degree of automation. 2. The sealing pressure value can be set and displayed. 3. It adopts electric drive, and the battery seal has no vibration and no leakage. 4. Configured with different molds, button batteries of different specifications can be encapsulated and disassembled, so that one machine can be used for multiple purposes. 5. Precise mold design ensures accurate and reliable sealing molding, stable and safe use. 6. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding and so on.

Name	Parameters
Sealing pressure adjustable range	Min.80Kg, Max.1400Kg
Sealing stroke	30mm
Pressure Accuracy	±1.5%
Sealing Efficiency	20 second/piece
Power supply	AC220V/50Hz.110V/60Hz
Equipment dimension	About L240*W190*H450mm
