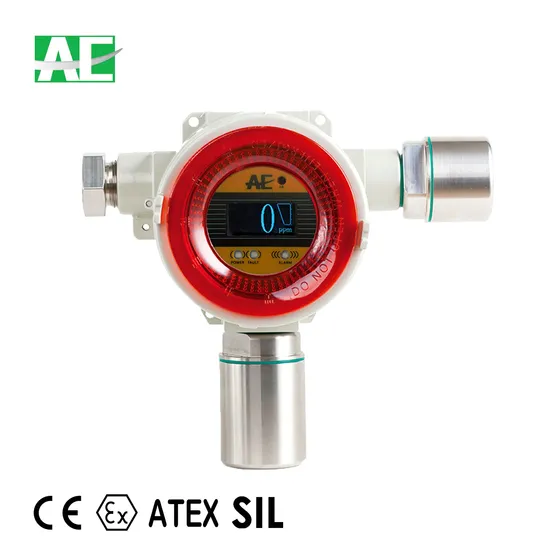

Iecex Atex Sil2 Certified Fixed Gas Monitor with Integrated Sound Light Alarm and OLED Display

Product Description

ATEX SIL2 certified Fixed gas monitor with integrated sound light alarm and OLED display Introduction
AF110, AF111, AG310, AG311 gas detectors are suitable for detecting the combustible and toxic gases in hazardous areas. The product adopts the integrated design of sound and light alarm, which can effectively warn all kinds of gas leakage hazards; The smart sensor modular design supports hot-plugging and easy maintenance; The product is equipped with infrared remote control, which can realize completely no cover operation. IP66 protection can be applied to all kinds of bad occasions.
Features
-integrated design with sound and light alarm.
-The patented hot-plug sensor module integrates the sensor and calibration information into replaceable components. Suitable to replace the sensor in the site directly without calibration and ready-to-use when plug new sensor module even it's a different gas sensor, much convenient.
-P66 design with body material in stainless steel and aluminum alloy, suitable for harsh environments.
-High-brightness OLED display, capable to see readings in any angle.
-Built-in two relays, multi-functional control is possible.
-Full English menu, remote control operation. Complete product certification (ATEX, SIL, CCCF, etc. )
Specifications

Description	Specifications	AF110	AF111	AG310	AG311
Gas Detected
Ex	Catalytic combustion	√	√	-	-
Toxic	Electrochemical	-	-	√	√
Function
Measure range	See QUICK-SELECTION-TABLE	√	√	√	√
Response time*	T90≤30S	√	√	-	-
	T90≤60/180S	-	-	√	√
Accuracy*	≤±5%F. S	√	√	√	√
Repeatability*	≤2%F. S	√	√	√	√
Electric
Power supply	18-28VDC(standard 24VDC)	√	√	√	√
Power consumption	≤3W	√	√	-	-
	≤2W	-	-	√	√
Signal output	4-20mA	√	-	√	-
	RS485	-	√	-	√
Wiring	Three-wire	√	-	√	-
	Four-wire	-	√	-	√
Suitable cable	RVVP3*1.5mm2	√	-	√	-
	RVVP4*1.0mm2	-	√	-	√
Relay output	2 passive relay (250VAC/5A 30VDC/5A)	√	√	√	√
Display & Operation
Display	OLED display	√	√	√	√
Indicator light	Power, fault, alarm-1, alarm-2	√	√	√	√
Operation method	Remote control operation	√	√	√	√
Environment
Ingress protection	IP66	√	√	√	√
Operating temperature	-40ºC~70ºC	√	√	-	-
	-20ºC~60ºC	-	-	√	√
Operating humidity	10~95%RH non-condensing	√	√	√	√
Operating pressure	80-120kPa	√	√	√	√
Structure
Body material	ADC12 aluminum alloy +316L stainless steel	√	√	√	√
Close nipple	NPT1/2	√	√	√	√
Weight	About 2.3kg	√	√	√	√
Dimensions	184*220*99mm(H*W*D)	√	√	√	√
Certificates
CPA	2015C563-32	√	√	√	√
EX	ExdibIICT6 GB	√	√	√	√
CCCF	073184850122ROM	√	-	-	-
	073184850123ROM	-	√	-	-
SIL	SIL2	√	√	√	√
ATEX	ExdbiIICT6 GB	√	√	√	√
Note: * refers to there's some difference vary from different gas, please contact the manufacturer for details.
