Advanced Switchgear Cabinet for Reliable Power Management Solutions

Product Description

Product Description
A switchgear is an electrical equipment mainly used for opening, closing, controlling, and protecting electrical equipment during the generation, transmission, distribution, and energy conversion processes of power systems.
structure

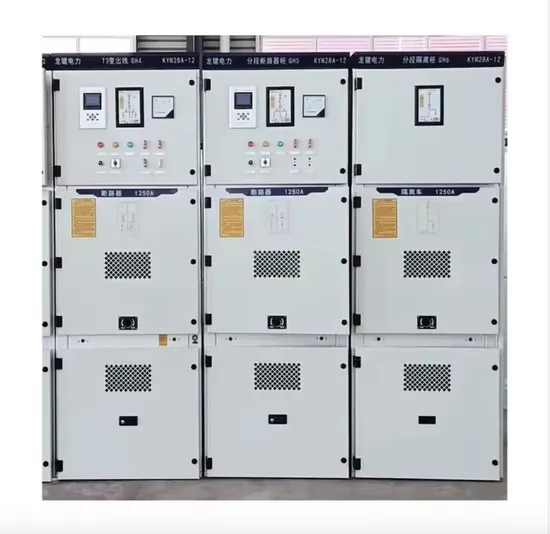

High voltage switchgear: usually includes busbar room, circuit breaker room, secondary control room (instrument room), feeder room, etc., and each room is isolated with steel plates. Like KYN28A-12 model, the upper part is the instrument room, the middle part is the circuit breaker room, and the lower part is the cable room. Low voltage switchgear: It is divided into fixed and drawer type according to the installation method of components. Drawer type switchgear consists of a fixed cabinet body and a movable device part.
Internal components
It mainly includes circuit breakers, isolating switches, load switches, operating mechanisms, transformers, and various protective devices.
classification
According to the installation method of the circuit breaker, it can be divided into movable and fixed types; According to the cabinet structure, it can be divided into open, metal enclosed, and metal enclosed armored types; Divided into high-voltage switchgear (above AC1000V) and low-voltage switchgear (below AC1000V) according to voltage levels; Divided into AC switchgear and DC switchgear according to voltage waveform; Divided by purpose into incoming cabinets, outgoing cabinets, metering cabinets, compensation cabinets, etc.
effect
Control function: It can connect and disconnect the circuit to achieve start stop control of power equipment. Protection function: When the circuit experiences overload, short circuit, leakage and other faults, it automatically cuts off the circuit to protect the safety of equipment and personnel.
Application location
Suitable for power plants, substations, petrochemicals, metallurgical steel rolling, light industry textiles, factories and mines, residential areas, high-rise buildings, etc. Product Parameters

Installeo power	100-2000KW
The number of inverter input channels	1 way-5way(The above suggested matching AC combiner box)
Grid-connected output channels	1way
Grid connection requirements	Three-phase grid-connected cabinet
Grid-connected voltage	AC:380V-AC:500V
Protective function:
Short circuit protection	Have
Overload protection	Have
Lightning protection	Have (nominal current: In:20KA,lmax: 40KA, Up≤4KV)
Isolation Protection (Visual Breakpoints)	Have(knife switch/disconnector)
Optional function	1. Online power quality monitor
	2. Anti-islanding protection device
	3.Accident Degradation Column Device
Panel manual openingand closing	have
Overvoltage and undervoltage protection	have
Automatic reclosing	have
Grid-connected switch
Plastic case reclosing100-800A (optional)	1. When the power grid is powered off or the bias voltage is greater than 20%. it wilautomatically trip (0~10s delayed tripping time is adjustable) 2. When the power grid returns to normal, it will automatically close 3. Manual operation and automatic operation can be switched 4.Phase loss protection, zero break protection 5. Check for pressure closing
Universal frame circuitbreaker 200~4000A(optional)

Applicable environment.
Temperature, humidity	Working temperature: -25 to +60 'c Storage temperature. -40 to +70 'C, humidity. 0-90% nocondensation, no corrosive gas place (if any, please specify)
Use altitude
Salt spray resistant	Standard salt spray test 336 hours
General parameters.
Box material	Cold-rolled plate spraying, stainless steel
Use place	Indoor type (can be customized outdoor type)
Type of cabinet	Power distribution cabinet, metering cabinet, transformer cabinet, isolation switch cabinet

Main product
