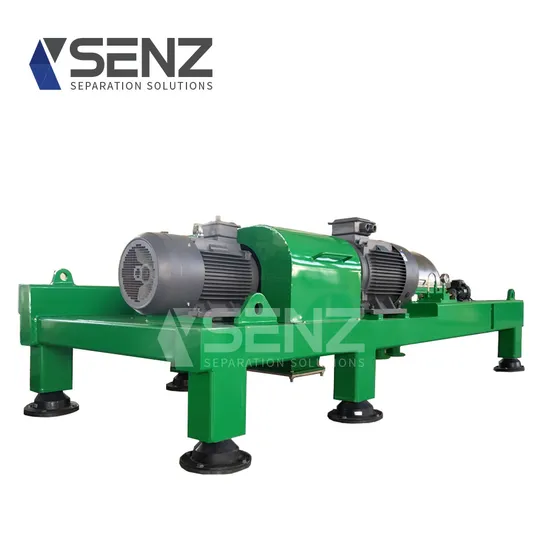

Large Capacity 5-35/H Continuous Feeding Discharge Horizontal 2-Phase Decanter Centrifuge

Product Description

Product Description
China Centrifugal Manufacturer Latest Design CE Approved Decanter Centrifuge Separator
This equipment is a LW series product, commonly used for dehydration and concentration. Widely used for maximum dewatering requirements of municipal and industrial wastewater sludge. It is characterized by small size, high rotational speed, and small processing capacity, and is used in situations where large separation factors and small processing capacity are required.
According to practical use, it can be divided into: clarification type, dehydration type, concentration type, separation type,classification type, extraction type; Users can choose by themselves. Dehydration horizontal spiral centrifuge is suitable for easily separated materials with large particle size, large solid-liquid density difference, low viscosity, high concentration, strong processing capacity, and higher dryness than clarity. Materials such as sludge or wastewater containing fine particles usually require the addition of flocculants to condense the fine particles into large particles, which are then dewatered using a sedimentation centrifuge. The horizontal screw centrifuge relies on the density difference between the solid and liquid phases to accelerate the sedimentation rate of solid particles under the action of centrifugal force to achieve solid liquid separation. The centrifuge consists of two rotors, one called a drum, and the other rotor is a screw discharger (referred to as a screw). When the drum rotates at a high speed, the slurry inside the drum rotates with the drum and is subjected to a centrifugal force that is many times greater than gravity. In this way, solid particles will be separated from the liquid and settle onto the inner wall of the drum from the centrifuge drum shaft. The screw discharger located inside the drum rotates at a speed lower than the drum and pushes the deposited solid particles to the slag outlet, The differential rotational speed between the outer drum and the screw discharger depends on the transmission ratio of the differential and its rotational speed.
Application Scopes:
1.Industrial and municipal wastewater treatment
2.Oil gas drilling mud/fluid control
3.Washing, separation and dewater of starch
4.Mycelium and zymotic fluid separation for antibiotic
5.Dewatering of soybean and wheat protein
6.Dewatering of fish power and fish meat
7.Dewatering of vinasse.
8.Clarification and extraction of fruit juice
9.Separation and purification for animal and vegetable oil
10.Production and purification of olive oil, palm oil, avocado oil
11.Separation and purification for coal tar
12.Grading of kaolin and graphite
13.Grading and dewatering of dyestuff and pigment
14.Froth flotation for cleaned coal and dewatering of coal mud
15.Grading and dewatering of minerals working principle
Structure Diagram of 2-Phase Decanter Centrifuge Separation
Product Parameters

Model	Diameter	Length	Max Speed (R/Min)	L/D Ratio	G-Force (G)	Capacity	Main Motor Power	Weight	Dimension (L*W*H)
	(Mm)	(Mm)				(M3/H)	(Kw)	(Kg)	(Mm)
LW500*1250	500	1250	2800	2.5	2195	5~25	37	2500	2770*1800*1170
LW500*1500	500	1500	2800	3	2195	5~30	37	2680	3020*1800*1170
LW500*2000	500	2000	2500	4	1750	5-35	45	4000	3520*1800*1170

Place of Origin China
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2024
Warranty of core components 1 Year
Core Components Motor
Weight 4000 KGS
Warranty 1 Year
Key Selling Points Easy to Operate
Applicable Industries Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location None
Type 2 phase Centrifuge
Condition New
Brand Name Shenzhou Voltage 380V50HZ
Dimension(L*W*H) Model
Motor ABB
Touch screen Siemens
Screw production 1 Screw production 2
High speed dynamic balance detection 1 High speed dynamic balance detection 2 Successful Project
Material Choice According to users' requirement,the product contact parts can be made of austenite stainless steel (321,316L...904L,C2205),Haynes alloy titanic alloy or other anti-erosion materials
Below is Sewage treatment plant in Russia.
Company Profile
Jinhua Shenzhou as the Earliest Centrifugal Manufacturer In China
Jinhua Shenzhou Centrifuge Co.,Ltd is one of the leading manufacturer in China, Which was Established In 1980, conveying an Area Of 80000M2 ,there are 2500 Staffs and employee in our company.200 of them are technicians and engineers.It has obtained the approvals and certifications of both CE and ISO.
Some of our machines gained the new technology invent patent. We are on of the world's leading manufacturers of decanter centrifuge,disc centrifuge,tubular centrifuge,separation systems and drying equipment. now there are over 180 series or decanter centrifuges and disc separators used home and abroad.Including U.S.A , Canada ,Australia,Russia ,Brazil,Singapore and so on . totally 70 Countries. We own various kinds of inspection and testing facilities with value Over USD10 Million, We also welcome OEM and ODM orders. Certifications
Packaging & Shipping

Wooden case
Our philosophies of development
* Based on continuous strengthen oursleves with full of innovative ideas
* 5% of sales revenue is allocated into intensive research
* 8% of workforce is allocated into development activity
* Plenty of patent and good quality new products FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 30 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply.According to customer requirements, We support the customized include package.
3)We use famouse good quality materials and the best production process

Q2.What's the Payment?
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal.
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us at any time.
