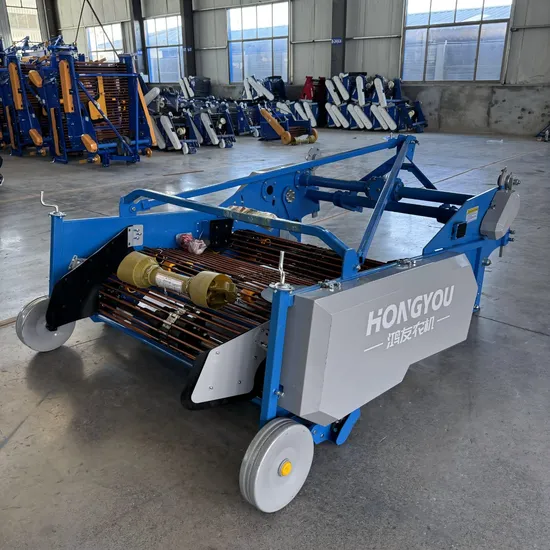

Double Row Horizontal Cut Harvester Fully Automatic Sorting and Loading Potato Picker

Product Description

Product Description
Potato Harvester
As a common crop, potatoes are grown in large quantities in many places. However, harvesting potatoes has always been a time-consuming, labor-intensive endeavor, especially when grown on a large scale. In addition, traditional artificial harvesting easily leads to potato damage and bruising, reducing the commercial value and storage life of potatoes. The use of harvesters to harvest potato and other potato crops, not only through the machine to complete the digging, cleaning, separation work, saving labor costs, but also to improve production efficiency.
Features of sweet potato harvester :
1. excellent performance, good appearance, best quality
2. high-working efficiency, lower breakage rate
3. light & quick running without vibration, no jamming
4. has a long useful life
The bearings used in the multi-functional harvester produced by the DE ZHOU HONGYOU AGRICULTURAL MACHINERY CO.,LTD are ETK bearings, and the chains used are Donghua chains.Bearings and chains are international standards. In addition, for the main engine frame, gearbox, if damaged within one year, DE ZHOU HONGYOU AGRICULTURAL MACHINERY CO.,LTD will provide you with a replacement service. Product details
Shovel Blade Chain Pole
PTO Mowing Sheet Gear Box Product Specifications

4UD- SERIES AND 4UX- SERIES
The main differences between the 4UD-Series harvesters and the 4UX-Series harvesters are:
1.The shovel blade of the 4UD-series harvester is automatically retractable; The 4UX-series harvester's shovel blade is fixed.
2.The working efficiency of the 4UD-series harvesters is higher;
3.The 4UX-series harvesters are more suitable for areas with soft soil; The 4UD-series harvester performs well where the soil is solid.
4UD- SERIES 4UX- SERIES

	4UD-160 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	16	Type Of Excavation Device	Motor Scraper
2	Working Size (length*width*height)	2300*1900*1150mm	17	Blade Material	65Mn
3	Transport dimensions (length*width*height)	2000*1900*1150mm	18	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	660kg	19	Depth Limiting Mechanism Type	Central Link
5	Working Width	1600mm	20	Type Of Cleaning Separation Device	Simple Harmonic Vibration
6	Operation Efficiency	≥0.29 hectares/h	21	Conveyer Type	Belt Type
7	Supporting Power/ Machine Horsepower	≥70Hp	22	Conveyor Chain Clearance	50mm
8	Matched To The Power Output Shaft Speed	540r/min	23	Chain Bar Material	55CrSi
9	Matching Hanging Width	880mm	24	Common Land Roller	Optional Device

Packaging
To ensure the safe delivery of your products, we offer a range of packaging options including direct loading container, Wooden case packing, iron frame wrapping and direct wrapping. You can select the most suitable option based on your specific requirements. Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop.

We warmly welcome both new and old customers to cooperate and negotiate with us.
Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.
We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop.
Our company is dedicated to provide customers with stable quality products and satisfactory service.The company guarantees: for the sake of customers,
responsible for product quality in the end.
Our performance pledges include:
Introduce products to customers, provide consultation and necessary technical and quality information.
To help customers choose product types, specifications and models s cientifically and reasonably.
After the service is completed, the after-sales service staff will conduc t customer return visits to ensure customer satisfaction with the service and collect feedback to improve the service quality.
