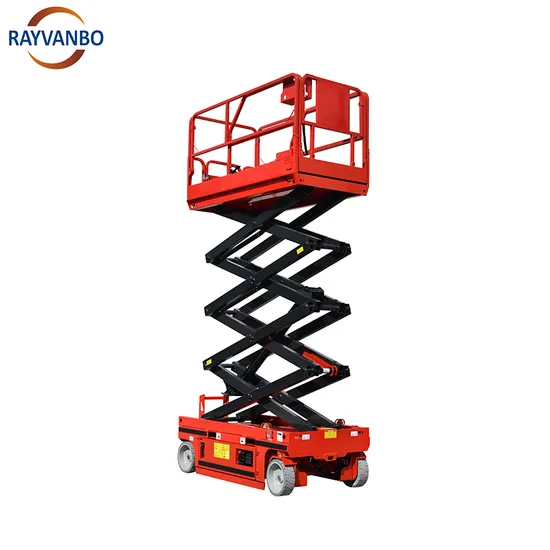

10m 12m 230kg 320kg 450kg Electric Scissor Lift Height Self-Propelled Scissor Lift

10m 12m 230kg 320kg 450kg Electric Scissor Lift Height Self-Propelled Scissor Lift

US$4,999.00-7,999.00 1 Set (MOQ)

Basic Info.

Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Light Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Insulating
Product Name
Self-Propelled Scissor Lift
Lifting Height
4-14m
Usage
Higher Level
Gradeability
25%
Color
Customers′ Requirements
OEM
Accept
Max.Working Height
13.8m
Max.Platform Height
11.8m
Overall Length(with Ladder)
2430mm
Overall Width
1210mm
Overall Height (Unfolded Guardrail)
2600mm
Overall Height (Folded Guardrail)
2060mm
Platform Size
2270&1120mm
Platform Extension Size
900mm
Wheelbase
1870mm
Transport Package
Standard Export Packing
Specification
230kg 320kg 450kg
Trademark
Rayvanbo
Origin
Hubei, China
HS Code
8428909090

Product Description

Product Description
The self-propelled scissor-type aerial work platform is also called a self-propelled lift, self-propelled lift truck, self-propelled climbing vehicle, self-propelled lifting platform, etc. It is a rechargeable lifting equipment. The staff stands on the work surface and operates the handle controller to move forward and backward, turn, lift, etc., without human assistance, saving manpower and greatly improving work efficiency. Multiple safety protection devices can sound alarms and stop working in the event of overload, uneven site, tilted body, insufficient power, etc., which is safer. Its scissor-type mechanical structure makes the lifting platform have higher stability, a wide working platform and a higher carrying capacity, which makes the aerial work range larger and suitable for multiple people to work at the same time. It makes aerial work more efficient and safer.
Product Details
Product features
1. The pedal extension platform can be quickly deployed to the work point;
2. The foldable fence reduces the size of the whole machine;
3. The industry's smallest turning radius (inner wheel 0m) and compact design facilitate operation in a small space;
4. 25% climbing ability, able to climb the slope smoothly;
5. The rotating chassis is easy to maintain;
6. The fault code is automatically displayed for easy maintenance.

Product Parameters
Lifting height Working platform size (m) Loading weight
(Kg)		 Overall dimensions (m) Guardrail folded Overall dimensions (m)
Guardrail not folded		 Machine weight
(Kg)
4m(Min) electric drive 1.29*0.70 230 1.46*0.76*1.61 1.46*0.76*1.993 900
4.5m electric drive 1.34*0.75 230 1.51*0.80*1.45 1.51*0.80*2.06 1050
6m(Min) 1.68*0.74 230 1.85*0.79*1.67 1.85*0.79*2.20 1430
6m 2.27*1.12 450 2.43*1.21*1.67 2.43*1.21*2.22 2250
8M 2.27*1.12 450 2.43*1.21*1.8 2.43*1.21*2.35 2350
8M(Narrow) 2.27*0.86 320 2.43*0.89*1.9 2..43*0.89*2.35 2260
10M 2.27*1.12 320 2.43*1.21*1.93 2.43*1.21*2.47 2550
12M 2.27*1.12 320 2.43*1.21*2.06 2.43*1.21*2.6 3000
14M 2.7*1.11 230 2.85*1.31*2.06 2.85*1.31*2.6 3670
