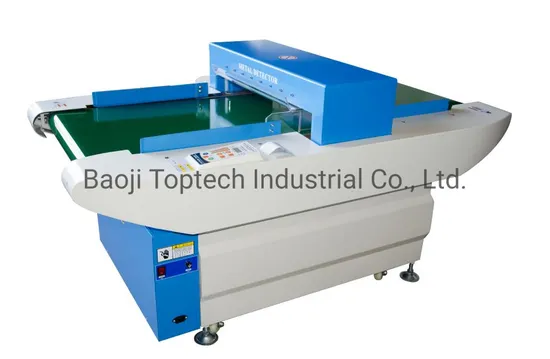

High Accuracy Conveyor Belt Broken Needle Detector Jc-600-P (Support Print) for Garments, Textile

Product Description

needle detector, metal detector, needle detectors, industrial metal detector, automatic metal detector, metal detector machiner, metal detector equipment, detector metal,detector needle,tunnel metal detector,belt metal detector,garment needle detector,garment metal detector,apparel needle detector,sock metal detector,sock needle detector,shoes metal detector,shoes needle detector,toy metal detector,toy needle detector,textile metal detector,textile needle detector,cloth metal detector,cloth needle detector,needle detection machine,metal detection machine,needle check,metal check,check needle,check metal,find metal,find needle,digital metal detector, electronic metal detector,broken needle
Automatic conveyor type
[Range of Application]
It can be used to detect underwear, shirts, knitted sweaters, down and feather garments, shoes, scoks, beddings as well as plush medium and small toys.
[Main features]
1. ABS plastic shell.
2. Cycled, 9 pairs of scnsor, excellentanti-disturbance performance.
3. Based on LED bar displayed control panel.
4.Support print function, to support out the work record,
5. Smart counter.
6. Hi accuracy detection locating technology, LED indication.
6. Alarm functions can be divided into three types, saying sound, lamplight and frequency display.
7. Optional conveying mode after alarm; Optional automatical restart.
8. Reliability mechanical frame design, Hi stable during detection.
9. Designed for universal AC power supply, switch power supply.
[SPECIFICATIONS]
Model: JC-600/P100MM
Detection method: Magnetic induction
Detection sensitivity: 0.8mm steel to samll scissors
Detection adjustment: 10step
Detection width: 600mm
Alarm method: Buzzer\Lamp
Belt speed: 32m/min(50Hz)\40m/min(60Hz)
Power source: AC200-240V 50-60Hz
Rated output: Appr140W
Dimension: 1650mm(L)*1050mm(W)*900mm(H)
Weight: Appr220Kg

Model	Tunnel width	Tunnel height	Detection sensitivity
JC-600/P80	600MM	80MM	>=0.8mm
JC-600/P100	600MM	100MM	>=0.8mm
JC-600/P150	600MM	150MM	>=1.0mm
JC-600/P200	600MM	200MM	>=1.2mm
JC-600/P300	600MM	300MM	>=2.0mm
JC-600/P450	600MM	450MM	>=3.0mm

Strong frame model needle detector for carton cloth,textile big size and heavy product inspection
Double head needle detector for shoes,cloth,toys,textile product inspection
