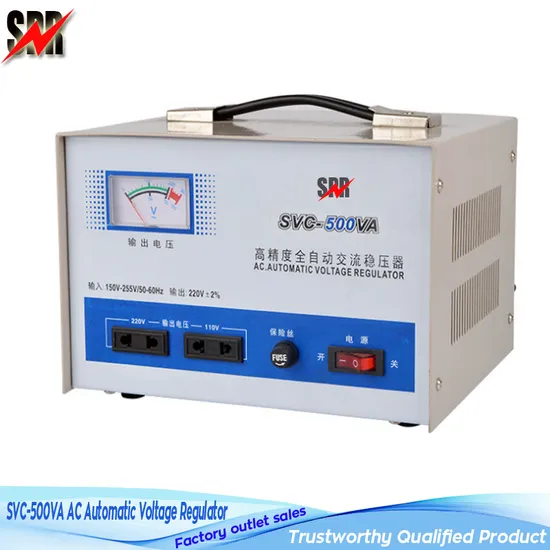

SVC-500va Automatic Voltage Stabilizer, SVC-500va AC Automatic Voltage Regulator

SVC-500va Automatic Voltage Stabilizer, SVC-500va AC Automatic Voltage Regulator

US$15.85-21.85 100 Pieces (MOQ)

Basic Info.

Model NO.
SVC
Frequency Characteristics
Low Frequency
Usage
SVC
Frequency
Low Frequency
Size
Small
Iron Core Shape
Ring
Power Source
Linear Regulated Power Supply
Application Range
Construction Site
Brand
Spr or OEM
Transport Package
100PCS/CTN
Specification
Int′l Standards
Trademark
SPR or OEM
Origin
Wenzhou
HS Code
8504401300
Production Capacity
10000PCS/Week

Product Description

1.Application:
SVC automatic voltage stabilizer consists of contact voltage regulator,sampling control cir-cuit and servomotor as well.It has excellent features,
such as small waveform distortion,highefficiency,high power factor,free from the effect or frequency variation of supply.It can bewidely used
in most situations where the voltage stabilization is required.
2. Specifications:
Input voltage 150V-250V
Output voltage 220V±3%, 110V±3%
Frequency 50H/60Hz
Response time <1sec.(against 10% input voltage deviation)
Efficiency >90%
Ambient temperature -10ºC~±40ºC
Relative humidity <90%
Waveform distortion Non-lack fidelity waveform
Power factor cos∮ 0.8
Insutalion resistance >5MΩ

3. Outline and packing
Type Outline(cm) Weight(Kg) Qty/CTN
L W H
SVC-500VA 18.5 15 12.5 17 4PCS
SVC-1000VA 21 18 14.5 20 4PCS
SVC-1500VA 21 18 14.5 25 4PCS
SVC-2000VA 27.5 23.5 18.5 7.8 1PC
SVC-3000VA 29 23 22 9.8 1PC
SVC-5000VA 45 24 18.5 14 1PC
SVC-7500VA 47 26 22 19.5 1PC
SVC-10000VA 47 26 22 24.5 1PC
SVC-15000VA 42 38 73 35 1PC
SVC-20000VA 42 38 73 68.5 1PC
SVC-30000VA 42 38 83 80 1PC
SVC-5000VA 28 30 46 19 1PC (Cabinet)
SVC-10000VA 44 32 56 31 1PC (Cabinet)
