Two-Component Silicone Coating Machine Double Glass Production Line

Product Description

Arm Kneader is an ideal equipment , design for mixing , kneading , crushing , dispersing high viscosity plastic materials , and has good performance in uniform mixing , no dead ends and high efficiency kneading It has six major components . kneading part , base part , the transmission system , vacuum system , hydraulic system , electric control system , etc .Place of all the contact material is made of stainless steel . There are three choices of oil circulation , electric heating , steam and water cooling.The heating and cooling can be carried out according to the requirements made of the cylinder jacket , wallboard jacket ,stirring blade pass water through hot oil structure . Discharge hydraulic cylinder turned ; screw the material under the loading and other forms .The paddle shaft seal with a unique equilibrium structure of the vacuum tank to prevent the the fillers wear particles into the cylinder , particularly favorable to improve the system vacuum and material purity.It is widely used in many industries : high viscosity sealant , silicone rubber , BMC , adhesive , also , used in batteries , ink , pigments , dyes , pharmaceuticals , resins , plastics , rubber , cosmetics ects.

Introduction 1) Kneading machine does very well in mixing, kneading, crushing and dispersing for high viscosity liquid materials, with no dead point.
2)Two sigma or Z-type blades.
3)Equipped with inverter for frequency control.
4)Vacuum and high pressure are available
5)The cylinder is opened hydraulically.
6)Discharge mode: Hydraulic tilting, Bottom pumping,or Screwing.
7)With jacket outside of the cylinder, for heating or cooling.
8)Heating mode: Hot oil, Electric or Steam.
9)All the parts that contact with material are made of stainless steel.

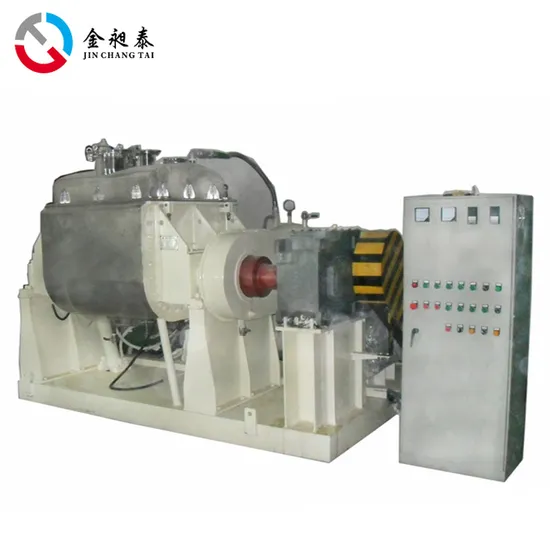

JCT Jacketed Heating Vacuum Kneading Machine (NHZ-600)
Technical parameters

Model	Chamber Volum(L)		Drive motor power (KW)	Mixing Speed (rpm)	Discharge mode			Heating
	Full volume	Feeding amount		Paddle fast / slow paddle	Optional parameters			Optional parameters
NHZ-5	5	3	2.2-4	75/50	Manual / Hydraulic tilting			Running Hot oil	Electrical heating	Pressure Steam
NHZ-20	20	12	3-5.5	63/42
NHZ-50	50	30	4-7.5	63/42
NHZ-100	100	60	5.5-7.5	43/29
NHZ-200	200	120	7.5-15	43/29	Hydraulic tilting	The bottom pumping	Screw extruding
NHZ-300	300	180	11-18.5	43/29
NHZ-500	500	300	18.5-30	43/29
NHZ-1000	1000	600	22-55	32/22
NHZ-1500	1500	900	30-90	32/22
NHZ-2000	2000	1200	45-110	32/22
NHZ-3000	3000	1800	55-130	33/22
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Inverter for frequency control if necessory.

Available products:
1. Unsaturated resins, alkyd resins, acrylic resins, polyurethane and other complete sets of production equipment;
2. Latex, white latex, rubber coating, film coating, all-purpose adhesive and other complete sets of production equipment;
3. Glass, plastic, silicone rubber, sealants and other sets of production equipment;
4. Raw rubber sets of production equipment;
5. Silicone waste pyrolysis recycling old solvent distillation recovery sets of production equipment;
6. Hot melt adhesive sets of production equipment;
7. Various types of powder mixing auger sets of production equipment;
8. Various non-standard chemical equipment design, production and installation.
about us
FAQ
Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
