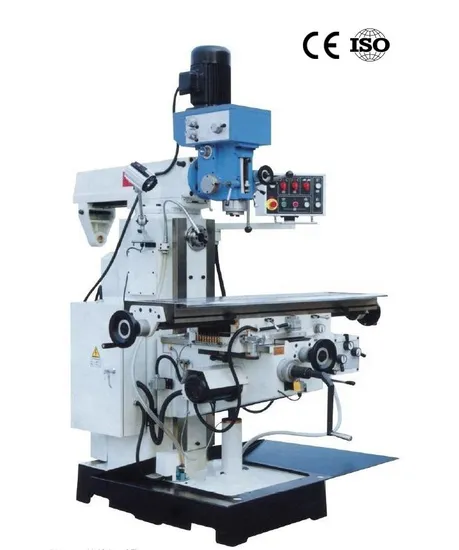

Universal Milling Machine Xw6032A Vertical and Horizontal Milling Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
XW6032A
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Table Size
1320X320mm
Size (Width)
14mm
Centre Distance
63mm
Max. Load of Table
300kg
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990
Product Description
| Universal Milling Machine XW6032A Feature |
| ·Rectangular table guideways with high stability |
| ·Hardened and ground table surface, guideways |
| ·Automatic feeds on X,Y axes, motorized lifting and lowering of table on Z axis |
| ·Headstock swivels ±35° |
| Specifications | XW6032A |
| Table size | 1320x320mm |
| T slot | 5 |
| Size (Width) | 14mm |
| Centre distance | 63mm |
| Max. load of Table | 300kg |
| Table Longitudinal travel(manual/auto) | 800/750mm |
| Table Cross travel (manual/auto) | 300mm |
| Table Vertical travel(manual/auto) | 400mm |
| Spindle taper | ISO50 |
| Spindle speed /step | 58-1800rpm/12 |
| Vertical spindle axis to column surface | 320mm |
| Vertical spindle nose to table surface | 0-341mm |
| Horizontal spindle axis to table surface | 0-400mm |
| Horizontal spindle axis to arm bottom | 175mm |
| Arm travel | 500mm |
| Longitudinal/cross feed/step | 20-360mm/min/8 |
| Vertical/step | 400mm/min/1 |
| Longitudinal/cross rapid speed | 1200mm/min |
| Rapid Traverse vertical | 400mm/min/1 |
| Main motor | 4kw |
| (X/Y) Feed motor | 0.55kw |
| (Z) Feed motor | 0.75kw |
| Coolant motor | 0.09kw |
| Package dimension | 207x170x225cm |
| N.W/G.W | 2100/2300kg |
| Standard Accessories | Optional Accessories |
| Machine Work lamp | Digital readout system |
| Coolant system | Deluxe pendent control station |
| CE electrical cabinet | Dividing head device |
| Vertical milling head | Rotary table |
| Drill chuck | Slotting head |
| Drawbar | Clamping kit |
| Chip tray | Vice |
| Manual lubrication oil pump | Swivel worktable |
| Pendent control station |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
