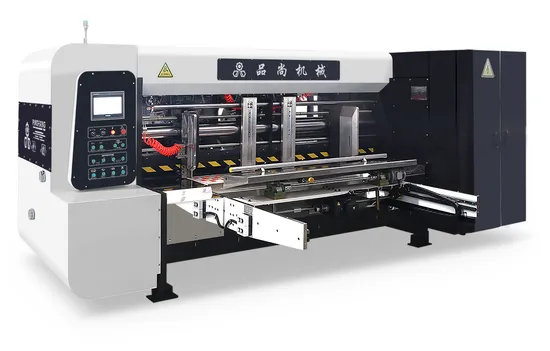

PS High Speed Lead Feeder Slotting Machine for Corrugated Box
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
K3-1424/K3-1428
Species
Rotary Die-Cutting Machine
Imprinting Type
Rotary Platen
Placing Form of Template
Depends on The Customer
Die Cutting Tool
Steel Blade
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials
Produce Object
Corrugated Board
Structure
6-Axis Precision Control
Available
Multi-Angle Slotting
Match
Stacker/Pre-Feeder
Transport Package
Shipping
Specification
3000*4600*2200mm
Trademark
Pinshang
Origin
Foshan, Guangdong
HS Code
8441400000
Production Capacity
100/Year
Product Description
PS High-Speed Lead Feeder Slotting Machine for Corrugated BoxProduct Features
Here's a table summarizing the features of the 6-axis Slotting Machine:
| 6-Axis Precision Control | Provides precise control over multiple axes, enabling intricate and complex slotting patterns. |
| Multi-Angle Slotting | Can perform slotting at various angles, allowing for customized and complex box designs. |
| High-Speed Operation | Operates at high speeds without compromising precision, increasing production efficiency. |
| Flexibility in Material Handling | Capable of processing different types of corrugated board, including single-wall, double-wall, and triple-wall. |
| Enhanced Automation | Features automatic settings for slot depth, angle, and positioning, reducing manual intervention. |
| Reduced Waste and Cost Efficiency | Ensures minimal material waste, optimizing board usage and reducing production costs. |
| User-Friendly Interface | Equipped with a touchscreen control system, making it easy to program and adjust settings. |
| Robust and Durable Construction | Built with high-quality materials to ensure long-term reliability and high uptime in industrial environments. |
| Customizable Design Features | Allows customization of slotting capabilities, such as cutting patterns, slot depths, and dimensions. |
| Energy Efficiency | Designed with energy-saving features, minimizing power consumption and reducing operational costs. |
| High Precision and Stability | Guarantees consistent, precise cuts with minimal deviation, ensuring uniform quality. |
| Low Maintenance Requirements | Built for low maintenance with easy access for routine checks and long-lasting durability. |
| Wide Application Range | Suitable for producing both standard and customized packaging solutions across various industries. |
Product Parameters
| Model | PS-K3-1424 | PS-K3-1428 |
| Max machine speed | 170pcs/min | 150pcs/min |
| Max feeding size | 2400*1400mm | 2900*1400mm |
| Max skip feeding size | 2400*1600mm | 2900*1600mm |
| Min feeding size | 710*360mm | 710*360mm |
| Min slotting distance | 260*75*260*75mm | 260*75*260*75mm |
| Max slotting depth | 350mm | 350mm |
| Paper thickness | 2-12mm | 2-12mm |
| Max glue flap width | 40mm | 40mm |
| Slotting knife thickness | 7mm | 7mm |
| Feeding accuracy | ±1.0mm | ±1.5mm |
| Slotting accuracy | ±1.0mm | ±1.5mm |
| Voltage supply | 380V, 50HZ, 3Phase | 380V, 50HZ, 3Phase |
| Total power | 30KW-without stacker, 32KW-with stacker | 30KW-without stacker, 32KW-with stacker |
| Total weight | 6000kgs-without stacker, 7600kgs-with stacker | 6520kgs-without stacker, 8120kgs-with stacker |
| Machine dimension | 3000*4600*2200mm-without stacker 8500*4600*2200mm-with stacker | 3000*5000*2200mm(without stacker) 8000*5000*2200mm(with stacker) |
