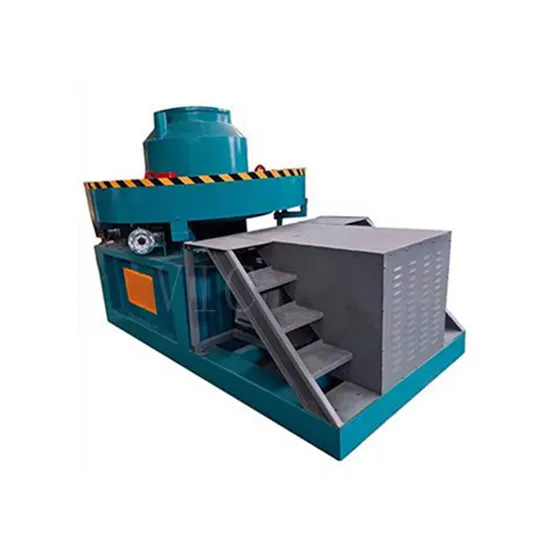

Full Automatic IndustrialHeavy-Duty Briquette Pressing Machine for Alfalfa and Feed Production

Product Description

Innovative Cube Size Alfalfa Pellet Press Machine
Product Description
Introduction:
This cube-size alfalfa pellet press machine is specifically engineered to transform sawdust, straw, hulls, and similar materials into high-quality biomass briquettes.
(1) Multi-function design: This versatile machine can extrude both pellets and briquettes, with briquette lengths easily adjustable between 50-100mm.Pellet diameters range from 4-12mm, while briquette cube diameters can be customized from 20-50mm.
(2) Steady output formation: Utilizing a mechanical ramjet design, the machine employs high temperature and high-pressure RAM principles to adjust the pressure angle, ensuring smooth and unblocked material output.
(3) Extended machine lifespan: Crafted from premium alloy steel and enhanced with vacuum firing technology, the die's durability is significantly augmented.
(4) High capacity: Engineered for continuous operation, the machine can run 24 hours non-stop,
(5) High density: Using a mechanical RAM design with principles of high temperature, high pressure, and high frequency, it achieves a remarkable density range of 1.0-1.3 g/cm3.
(6) Easy operation: With a high degree of automation, it demands minimal manual labor. The machine comes equipped with a feeder, output conveyor, and control box for seamless operation.
(7) Suitable for diverse materials: It adeptly handles various straws, grain husk, peanut hull, cotton straw, sawdust, branches, and even household waste.
(8)For optimal performance, the length of raw materials should be below 50mm. If longer, a crusher is required.
(9)The moisture content of raw materials should be below 25%. If considerably higher, pre-drying by sun or drier is necessary.
Main specifications for the cube-size alfalfa pellet press machine:

Model	9CK-120	9CK-160	9CK-250H	9CK-400
Capacity(T/h)	0.9-1.5	1.3-1.6	1.6-2.5	3--4
Motor Power (kw)	45	55	75	110
Size of products (mm)	30*30*50-100
Size (mm)	2700*1400*1600	2900*1450*1700	3020*1600*1900	3500*1700*2200
Weight (kg)	3200	3500	4300	4500

For more pictures and detailed information about the alfalfa cube machine:
9CK-120 alfalfa cube machine,
9CK-250 cube-size alfalfa pellet press machine,
9CK-400 grass cube briquette pressing machine.
Detailed Photos
The cutting-edge transmission system has been upgraded to a self-lubricating reducer transmission, replacing the
previous V-belt pulley mechanism. This new technology eliminates slipping and boosts transmission efficiency by an impressive 6%.
Innovative press roller system equipped with automatic lubrication, ensuring seamless operation and extending the machine's lifespan.
Advanced automatic lubrication system, meticulously designed to extend the bearing life significantly.
Sophisticated automatic control system featuring star-delta starting, which effectively reduces the starting current to
safeguard the motor and minimize the impact on other equipment in the production line.
(Button language can be customized to meet your specific needs)
Automated feeding belt conveyor with variable frequency speed regulation, complemented by a discharge belt conveyor.
Spare Parts
Customizable mould sizes to fit different production requirements.
Pressing Wheel
Final product: Alfalfa cubes, precisely processed by the 9CK-250 alfalfa cube machine.
Workshop Corner
Explore our other innovative new type Cube size alfalfa pellet press machines.
