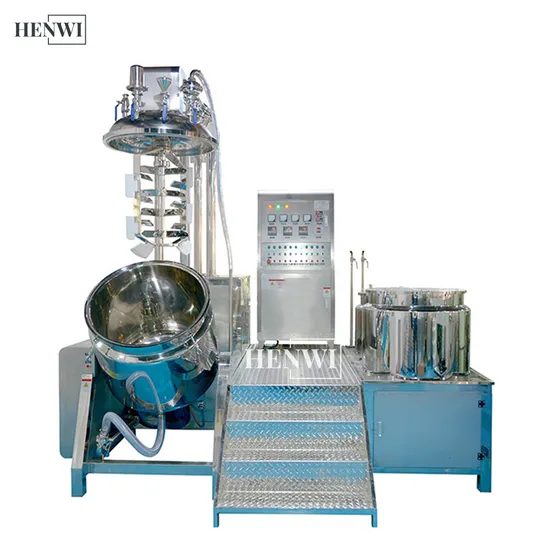

Stainless Steel Inline High Shear Emulsifier Cosmetic Emulsification System

Product Description

HENWI TECHNOLOGY
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard Product Description Hydraulic lifting vacuum emulsifier mixer
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.

Standard configuration --Emulsifier, water phase tanks, oil phase tank --Three-layer tank, steam or electric heating --Variable frequency speed scraper mixing --3600rpm high-speed homogenizer, fineness 0.2-5um --Vacuum pumps and sync solenoid valves --Stainless steel platform ans stairs --Button or HMI operation

Working Principle The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank. Detailed Photos
Product Parameters

No.	Model:	HWVM-XDL-500L
1	Working capacity	500L
2	Heating method	Steam/electric
3	Mixing type	Upper frame oar scraper mixer
4	Mixing motor power	4KW
5	Mixing frequency inverter	4KW
6	Mixing speed	0-65rpm
7	Homogenizer type	Bottom homogenizer with frequency inverter
8	Homogenizer power	11KW
9	Homogenizer speed	0-3000rpm950Hz)/0-3600rpm(60Hz)
10	Hydraulic lifting system	1.5KW
11	Vacuum system	Water cycle vacuum pump, power:2.2KW
12	Control method	Button control/HMI
13	Frequency inverter	Delta/Panasonic/Mitsubishi
14	Electrical components	Delixi
15	Jacket	Double jacket,3 layers
16	Tank's materials	Inner layer 6mm/SUS316Middle layer 5mm/SUS304Outer layer 3mm/SUS304

FAQ 1. Q: Are you a manufacturer or just a trading company? A: Foshan Henwi Technology company is one of the top technology-oriented machinery manufacturer in China. 2. Q: I am new in this field , can you recommend the whole production line? A: We can recommend you the whole production line depends on what products you will make: (1). If for paste or cream product, the following machine we will recommend you: RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (2). If for liquid product, the following machine we will recommend you: RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (3). If for Perfume, the following machine we will recommend you: RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine etc., (4). There are Full automatic production line and Semi automatic production line for your option.3. Q: What is your payment term? A: We usually pay by T/T., 40% deposit after sales confirmation, 60%before delivery.4. Q: What is your delivery day? A: Our delivery day is about 15-30 days after receive the deposit.
