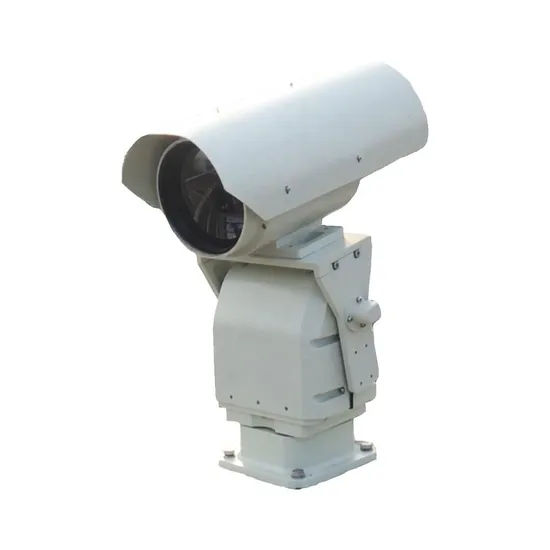

Waterproof IP66 High Speed Infrared Thermal Imaging PTZ Night Vision Camera
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
SHR-TIR30R
Recognition Distance
180m for Human, 490m for Vehicle
Identification
90m Human,240m Vehicle
Focal Length
30mm
Resolution
324X256 (640X512 Optional)
Warranty
One Year
Pan/Tilt
Small Type Pan/Tilt Platform
Weight
7.5kg
Protocol
Pelco-D or Pelco-P
Interface
RS485,BNC
Transport Package
Aluminum Alloy Box
Specification
CE FCC ROHS
Trademark
Sheenrun
Origin
Shandong Province, China
Production Capacity
2000 Units / Month
Product Description
SHR-TIR30 Short Range PTZ Infrared Thermal Imaging Camera1 Features
- 324x256 resolution, uncooled detector.
- NETD 50mk.
- Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors.
- Low power consumption, quick start
-RS485, analog signal.
- Easy to operate and maintain.
- High aluminum alloy shell with nitrogen inside, can work under harsh
environment 24/7.
| Distance | Target | Human (1.8m×0.5m) | Vehicle(2.3×2.3) |
| Detection distance | 720m | 1980m | |
| Recognition distance | 180m | 490m | |
| Identification distance | 90m | 240m | |
| Thermal lens | Focal length | 30mm | |
| FOV | 15.2°×11.4° | ||
| IFOV | 0.83mrad | ||
| Detector | Detector Type | Uncooled FPA | |
| Pixel | 324×256(640*512 optional) | ||
| Spectrum Range | 8~14μm | ||
| NETD | ≤50mK@F1.0, 300K | ||
| Frequency | 25Hz | ||
| Non- uniformity Correction | Auto/manual | ||
| Image Process | AGC, DDE, Pseudo Color | ||
| Video output | NTSC/PAL | ||
| Pantilt | Rotate | pan:0º ~ 360º tilt:+60°~ -60° | |
| Speed | Pan 0.1°~8°/S;tilt 0.1°~6°/S; | ||
| Presets | 200 | ||
| Communication Interface | Pelco-D,Pelco-P optional | ||
| Baud Rate | 2400/4800/9600/19200 bps optional | ||
| Install | Top load | ||
| Load at most | 10kg | ||
| Size | 385mm×212.5mm×260mm(L×W×H) | ||
| Interface | Power | AC24V | |
| Other | RS485,BNC | ||
| Environment | Working temperature | -25ºC~+55ºC | |
| Storage temperature | -40ºC~+65ºC | ||
| Protection | IP66 | ||
| Anti-vibration | 10~55Hz,0.75mm | ||
| Anti-impact | 150m/s2,11ms | ||
| Saltfrog proof | under PH6.5~7.2, continuous spraying fog for 48 hours | ||
| Power | Total | AC24V±10%,50Hz | |
| Consumption | ≤50W | ||
| Physical features | Weight | 7.25kg | |
| Installaiton | Outdoor base install | ||
