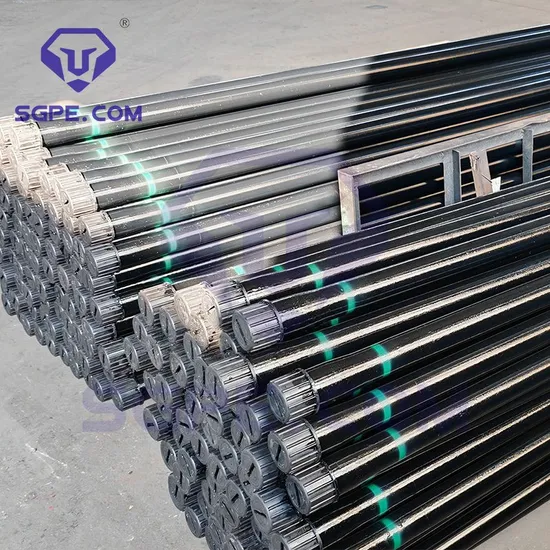

High-Performance Heavy Drill Pipe to Ensure Stable and Smooth Drilling Work

Product Description

API 5DP drill pipe seamless /drilling pipe
API 5DP drill pipe seamless /drilling pipe

drill pipe comply with the provisions under the Standards API SPEC 5DP and API SPEC7. The grade of steel for the drill pipe will be determined according to the requirements of Group 1 and Group 3 of API SPEC 5DP.
(i.e.: Group 1--Grade E; Group 3--Grade X-95, Grade -G-105 and Grade -S-135)
As per requirements of customers, drill pipe joints at the same level will be provided, and manufactured drill pipe joints will comply with the provisions under the Standard API SPEC 7.
Welcome to consult, we will provide the most comprehensive technical support!
Detailed information on API 5DP drill pipe seamless /drilling pipe

Size (in)	Nominal Weight (1b/ft)	OD of Pipe Body		Wall Thickness of Pipe Body		Conn. Type	OD of Pin and Box		ID of Pin
		(in)	(mm)	(in)	(mm)		(in)	(mm)	(in)	(mm)
2 3/8	6.65	2 3/8	60.32	0.28	7.11	NC26 (2 3/8 IF)	3 3/8	85.7	1 3/4	44.45
2 7/8	10.4	2 7/8	73.02	0.36	9.19	NC31 (2 7/8 IF)	4 1/8	104.8	2	50.8
3 1/2	13.3	3 1/2	88.9	0.37	9.35	NC38 (3 1/2 IF)	5	127	2 7/16	61.91
3 1/2	15.5	3 1/2	88.9	0.45	11.4	NC38 (3 1/2 IF)	5	127	2 1/8	53.98
4	14	4	101.6	0.33	8.38	NC46 (4 IF)	6	154.2	3 1/4	82.55
4 1/2	16.6	4 1/2	114.3	0.34	8.56	NC40 (4 IF)	6 1/4	158.8	3	76.2
5	19.5	5	127	0.36	9.19	NC50 (4 1/2 IF)	6 5/8	168.3	3 1/4	82.55
5	25.6	5	127	0.5	12.7	5 1/2 FH	7 1/4	184.2	3 1/4	82.55
5 1/2	21.9	5 1/2	139.7	0.36	9.17	5 1/2 FH	7 1/4	184.2	3 1/2	88.9
5 1/2	24.7	5 1/2	139.7	0.42	10.54	5 1/2 FH	7 1/4	184.2	3 1/2	88.9
6 5/8	25.2	6 5/8	168.28	0.33	8.38	6 5/8 FH	8 1/4	209.6	4 3/4	120.7
6 5/8	27.7	6 5/8	168.28	0.36	9.19	6 5/8 FH	8 1/4	209.6	4 3/4	120.7
