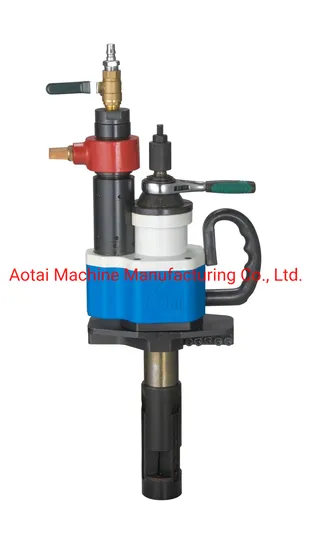

Y-Pneumtaic Pipe Beveling Machine/Tube Beveler (TCM-250)

Product Description

Y-PIPE BEVELING MACHINE The ID mounted Y-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "Y" shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.
Range for pipe ID 60-820mm
OVERVIEW
The ID mounted Y-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "Y" shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.
FEATURES
1,Cold cutting, without influence the material of the pipe
2,ID mounted, adopt Y structure
3,Varity of beveling shape: U, Single-V, double-V,J beveling
4,It can also be used for repairing inner wall and deep hole processing.
5,Working range: 60-820mm
6,Driven motor: Pneumatic and Electric
7,Customized machine is acceptable


CAPABILTY
1,Pipe end beveling
2,Inside beveling
3,Pipe facing

BEVELING SHAPE

SPECIFICATION

Model		Working range (ID mm)	thickens (mm)	power (kw)	Rotating speed (rpm)
Electric	Pneumatic
ISY-150	TCM-150	Ф60-171	≤15	1.43	30
ISY-250	TCM-250	Ф80-240	≤15	1.43	16
ISY-351	TCM-351	Ф150-330	≤15	1.43	10
ISY-630	TCM-630	Ф300-600	≤15	1.43	8
ISY-850	TCM-850	Ф600-820	≤15	2.0	7

Above parameters just for reference only, not acceptance criteria

POWER SUPPLIES

Electric: Convenient power supply Stable Performance Popular choice Electric requirement:220-230V 1PH 50/60HZ Power: 1.43KW,2.0KW

Pneumatic: Explosion Proof Stable Performance Easy to maintenance Air requirement:1500-2000L/min @0.63-0.8Mpa Power:2HP,3HP

BEVEL TYPE

Integrated tool
can be reused by grinding
Material:M42 and M35

Insert tool
Insert same, different angle holder
HolderMaterial: HSS ;
Insert material: Cermet or Carbide
Optional
