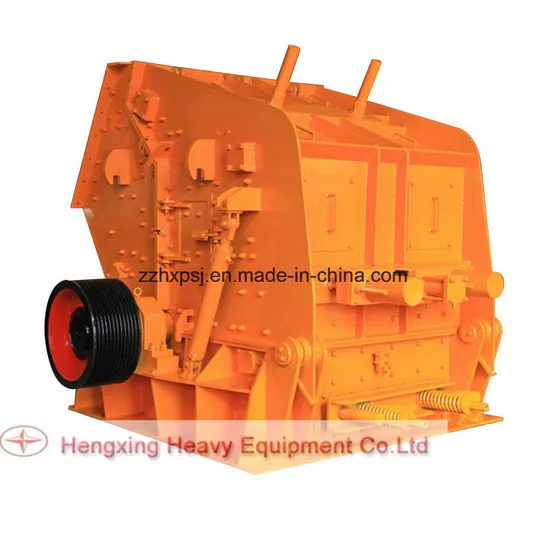

River Stone Impact Crusher Machine (PF Series)

Product Description

River Stone Impact Crusher Machine (PF Series)
Adjustable output size
Simple design high reliability
ISO9001-2008
Stone Impact Crusher:
The impact crusher from Zhengzhou Hengxing Heavy Equipment Co., Ltd is able to crushe lumps of max 500mm into 15-30mm. The discharge size is adjustable by adjusting the gap distance between impact plate and blow bar. We use anti-wear Mn steel impact plate and high quality chrome steel blow bar.
The stone Impact Crusher has the inner part, touching the material to be crushed, is protected by means of a special antiwear steel plates, interchangeable, which may be fixed & dismantled very easily.
Side windows with a manual opening operated for inspection of the interior of machine.
Impact bars of the special antiwear alloy steel, which can be replaced very easily.
Impact anvils, also made of special antiwear steel, protected by exchangeable thick bars made of special steel as well.
RIverstone Impact Crusher features:
1. Metal to Rock Crusing Technology
2. Cubical Shape Stone Aggregate as per International Standards for Road & Building works
3. Very useful to Vast production with quality discharge
4. Very easy for Maintance & Replacement of wear & Tear parts
5. Minimum Production cost due to low cost of wear & tear parts.
Riverstone impact crusher technical parameters:

Type	Spec.	Feeder Opening (mm)	Feeding Size (mm)	Crushing Capacity (t/h)	Motor Power (KW)	Weight (T)
PF-0607	Φ 644× 740	320× 770	100	10-20	30	6
PF-0807	Φ 850× 700	400× 730	300	15-30	30-45	8
PF-1008	Φ 1000× 800	400× 830	300	30-50	37-55	10
PF-1010	Φ 1000× 1050	400× 1080	350	50-80	55-75	13.1
PF-1210	Φ 1250× 1050	400× 1080	350	70-120	110-132	14
PF-1214	Φ 1250× 1400	400× 1430	350	130-180	132-160	18.6
PF-1315	Φ 1320× 1500	860× 1520	500	160-250	180-260	19
PF-1320	Φ 1320× 2000	860× 2030	500	300-350	300-375	24

Zhengzhou Hengxing Heavy Equipment Co., Ltd. is an ISO 9001: 2008 company and one of the leading Manufacturer and Exporter of 'Mining Equipments' with full lines comprising stone impact crusher, sand crusher, complete crushing and screening plant, ball mill, flotation machine and related ore dressing plant, rotary drier and etc. The company has known how to incorporate its products into client`s requirements together to provide both domestic and international customers with the best product and service as well.
