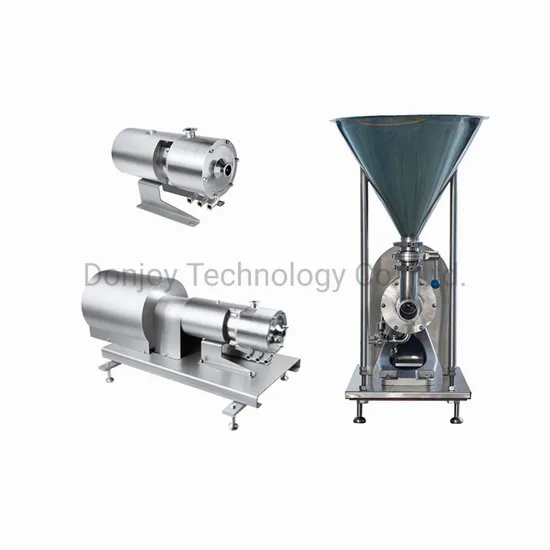

Homogeneous Multi-Stage Emulsifying Mixing Shearing Pump with 30kw Motor
| US$5,999.00-23,499.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JZ3
Certification
3A, FDA
Condition
New
Working
Shear Mixer
Function
Emulsification, Mixing, Homogenization
Motor
ABB Motor
Temperature
-20~140 Degree Centigrade
Power
7.5~90kw
Max. Flow
50t/H
Media Refinement
Less and Equal to 100 Grit
Material
SS316L
Mechanical Seal
Double Mechanical Seal
Connection Way
Threaded, Clamped, Flanged
Option
Trolley and Control Box
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
JZ3-130~240
Trademark
DONJOY & OEM
Origin
Wenzhou, China
HS Code
8413810090
Production Capacity
500PCS/Month
Product Description
Homogeneous Multi-Stage Emulsifying Mixing Shearing Pump with 30KW MotorSpecification:
| Product Name: | Multi-Stage Homogeneous Emulsifying Pump |
| Material: | Stainless steel 316L/1.4404 |
| Seal Material: | FPM(Viton) |
| Max. Flow: | 50 m3/H |
| Max. Power: | 90KW |
| Temperature: | -20~140 degree centigrade |
| Media refinement: | ≤ 100 GRIT (≈200 μm) |
| Mechanical seal: | SIC/C/FKM(Standard), optional: SIC/SIC/FKM, SIC/C/FFKM, SIC/SIC/FFKM |
| Surface treatment: | RA≤0.8μm, optianl: 0.6μm/0.4μm |
| Mechanical seal: | Double mechanical seal |
| Motor: | ABB/domestic |
| Motor Frequency: | 50HZ, 60HZ |
| Available connection: | Tri-Clamped, Threaded, Flanged connection |
| Available standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | By electric motor |
| Low discharge : | With bottom drain valve, sampling valve |
| Trolley: | Optional |
| Control box: | Optional |
| Motor cover: | Optional |
| Certification: | 3-A-02-11(N.O.1579); MD/06/42-EC(N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004; |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetics etc |
| Packaging Details: | By plywood case |
Advantage:
1. Maintenance, disassembly and installation can be completed without need of professionals and special tools.
2. When in installation and debugging, the motor won't be damaged even if with a short reverse rotation.
3. Impeller and shaft are connected by key groove.
