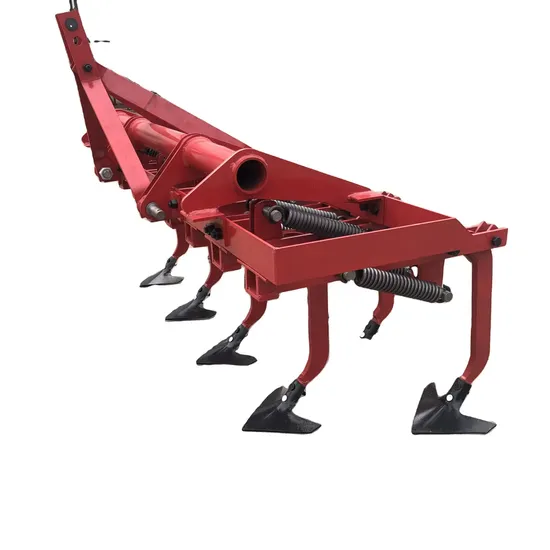

Tractor Mountched Deep Soil Loosening Cultivator/Deep

Product Description

Product Description
As a novel farm use tiller spring spring cultivator machines machines for sale developed by our company according to the demand ofthe international market, 3ZT dual-farm use tiller spring spring cultivator machines machines for sale adopts a dual-springstraining device.Advantage:1) The row space could be adjustable to meet the different soil condition. 2) The working width could be up to 3 meters 3) It is a mounted cultivator for 25-100hp tractor.4) The machine is suitable for cultivating and loosening soil in the corn ,cotton ,and beans field.
Main Technical Features
Main Feature 1) Double spring tension device can effectively protect the plow tip
2) Easy adjustment of row spacing and tillage depth, simple operation
Detailed Photos
1. Linkage- 12*60mm flat steelStrong and Durable
2. Double spring system - Double-spring tension device which enables the tines bounce automatically during operation when meet with obstacles and return to normal working quickly after over them ,by which the tines are protected .
3.Plough Legs - Thickness: 20mm- High temperature heat treatment, not easy to break
4.Main Frame - 80*80*8mm Angle steelUse strong materials for longer service life
5.Plough Shovel - 65 Mn Steel- 6 mm thickness - High temperature heat treatment, more durable and longer service life
6. Effect - It can excellently complete the field loosening of corn, cotton and beans

Product Parameters

Model	3ZT-1.0	3ZT-1.4	3ZT-1.8	3ZT-2.2	3ZT-2.6	3ZT-3.0
Working width(mm)	1000	1400	1800	2200	2600	3000
No. of Plowbody	5	7	9	11	13	15
Working Depth(mm)	100-200
Matched Power(hp)	25	30-40	40-50	50-70	70-90	80-100
Weight(kg)	260	300	350	420	490	580
Linkage	3 Point Mounted
