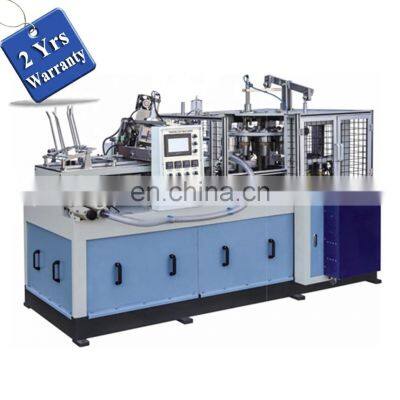

PS12S double layer ripple wave wall paper glass cup making forming machine with automatic lubrication system

Product Description

Product Description
PS12S double layer ripple wave wall paper glass cup making forming machine with automatic lubrication system
Videos
Video demonstration only for reference
Video 01: /watch?v=0at_z2P37L4
Product Description
DESCRIPTION:
PC12S/16S automatic paper cup forming machine is our latest machine, which is made base on our manufacturing experience and advanced technologyfrom oversea countries, it is a pioneer equipment in China. The machine comeswith rectangle tube and channel steel welding structure, which is stronger andsmall deformation, automatic lubrication system, which makes all mechanical partsworking much more smoothly. The cup bottom adopts the stretching die whichmake the bottom sealing quality better and less leaking percentage. It has PLC control, sensor failure detecting system, cup bottom paper feeding controlled byservo motor, bottom paper will be delivered when cup tube comes, otherwise nobottom paper delivery. The machine has safety guard to protect the people workingsafely, it is the best choice for makin.
PARAMTERS:

Model	PC12S	PC16S
Cup size	4~12 OZ	4~16 OZ
Paper material	Single-sided, double-sided PE coated paper 150-350GSM	Single-sided, double-sided PE coated paper 150-350GSM
Mouth diameter	30-105mm	30-105mm
Bottom diameter	30-75mm	30-75mm
Cup height	30-110mm	30-139mm
Bottom depth	≤10	≤10
Angle	2-8o	2-8o
Max Speed	55-60 pcs/min	55-60 pcs/min
Power supply	3phase, 380V, 50Hz	3phase, 380V, 50Hz
Total power	8KW double PE	8KW double PE
Weight	2600Kg	2700Kg
Packing size(L*W*H)	2700×1300×1700mm	2700×1300×1700mm

Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Pack & Ship
Wooden Case Loading and Transport
