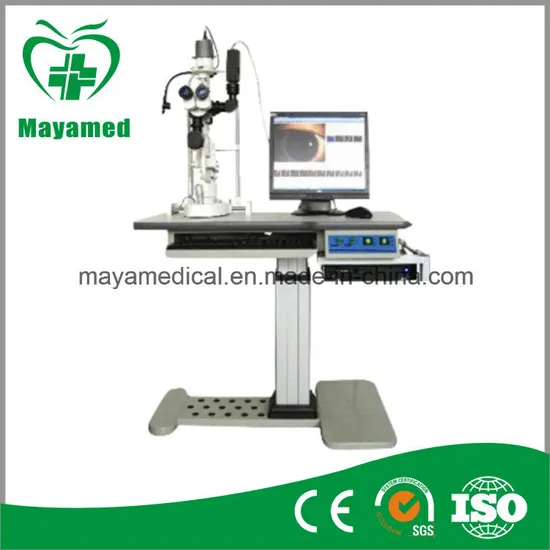

My-V009 Tower Style Slit Lamp with 5 Magnification

Product Description

My-V009 Tower Style Slit Lamp with 5 Magnification
MY-V009 tower style slit lamp with 5 magnification
Accessories
1)BacLite Background Illumination Model
2)Digital Camera Adaptor
3)Beam Splitter
4)MediView Image Process Software
5)Foot-controlled shooting model
6)CMOS

Specification:
1.The Galilean type microscope system adopts revolving drum,the highest magnification is 5 steps. (Professional type)
2.The excellent optical system can give you a clear and clean image.
3.The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object.
4.The German imported 6V20W Osram halogen lamp can fully make use of every beam. It can make sure that you get the clean and clear image effect with the minimum illumination, at the same time can protect the patients eye.
5.The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses.
6.The modular design can reserve the adapters, this is convenient to connect beam splitter, digital camera adapter and the CCD adapter, thus can upgrade to the digital camera system or the image capture system.
7.The adapter function is good, digital single lens reflex camera and the digital vidicon are compatible.
Microscope
Type	Galilean-Type
Magnification change	Revolving Drum
Total magnification Ratio	6x,10x, 16x, 25x,40x
	professional configuration
Eyepieces	12.5x
Angle between eyepieces	13 degree
Pupillary adjustment	55mm~78mm
Diopter adjustment	±6D
Field of view	40x (¢5.5mm), 25x (¢8.5mm),16x (¢13.5mm), 10x (¢22mm), 6x (¢34.7mm)
Slit Illumination:
Slit width	Continuously variable from 0 to 14mm
	at 14mm,slit becomes a circle
Slit length	Continuously variable from 1mm to 14mm
Lamp	6V/20W Halogen Lamp
Slit angle	0~180 degree(continuously adjustable both vertical and horizontal)
Slit inclination	4 step 5 degree,10 degree,15 degree,20 degree
Filters	Thermal safety,UV,Red-free,Cobalt Blue
Aperture diameters	¢14mm,¢10mm,¢5mm,¢3mm,¢2mm,¢1mm,¢0.2mm
Base
Longitudinal movement	90mm
Lateral movement	100mm
Vertical movement	30mm
Chin-Rest
Vertical movement	80mm
Fixation	Green LED
Power:
Input voltage	220V/110V~±10
Input frequency	50Hz/60Hz
Power consumption	30VAmax
Output voltage	Lamp 6V (continuously adjustable),Fixation 3V
Dimension & Weight:
Dimension	740mm x 450mm x 500mm
Gross weight	25Kg
Net weight	24kg
Working environment:
Temperature	+5~+40
Relative humidity	≤80%
Air pressure	800hpa~1060hpa
Storing environment:
Temperature	-40~+55
Relative humidity	≤93%
Air pressure	700hpa~1060hpa
Transporting environment:
Temperature	-40~+55
Relative humidity	≤93%
Air pressure	700hpa~1060hpa
