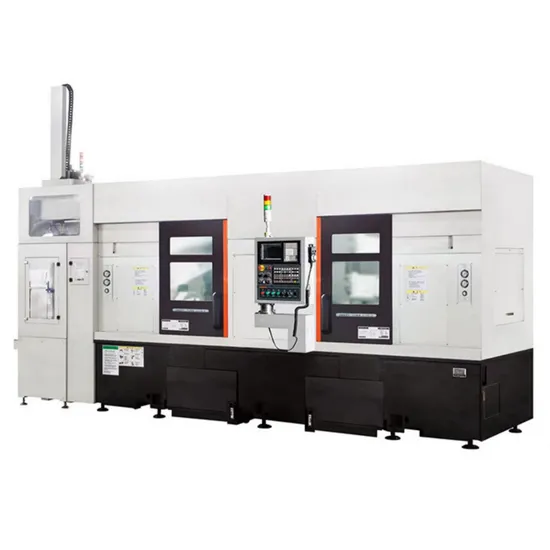

Opposite Double Spindle CNC Lathe Turning Center of MW20

Product Description

Item		Unit	MW20
Range	Max Swing	mm	Φ580
	Max Machining Diameter	mm	Φ360
	Max Machining Length	mm	300
	Chuck Face to Thimble	mm	320
	The X/Z axis Range	mm	200/300
	X/Z axis Fast Feed	m/min	30/30
Main spindle	Spindle Size	-	JIS A2-6
	Max Spindle Speed	rpm	4000
	Main Motor Power	kW	7.5/11(x2)
	Main Spindle Through Hole	mm	Φ63
	Max Bar Machining Diameter	mm	Φ52
X/Z Rotation	X/Z Rotation	rpm	3000
Type of Tool Holder	Turret	-	12 Position Turret
	Tool Holder	mm	25x25
	Boring Bar	mm	Ø32
Coolant Tank Volume		L	150(x2)
Bed Inclination		-	30°
Dimension(L x W x H)		mm	3650x1550x1630
Weight		kg	7000

Gantry Robot
Item	Parameter
Maximum X-axis Moving Speed	180m/min
X-axis Material(beam)	Structural Steel
X-axis Guide Rail	Linear Guide Rail
Maximum Z-axis Moving Speed	150m/min
Y-axis Material(vertical Arm)	Aluminium
Z-axis Guide Rail	Linear Guide Rail
Position Accuracy	±0.05
Drive Mode	Rack and Pinion
Electric Control Mode	Servo Drive+Gear Reducer

Company Profile
Zhejiang Infrotronic Intelligent Machinery Technology Co.,Ltd. is a joint venture of Jingxing Co.,Ltd. (Joint-stock code: 002067), with a registered capital of 30 million yuan. The company is located in Jiaxing, Zhejiang, 60km from Shanghai. Covering an area of 30000 square meters and a construction area of 20000 square meters.Infrotronic Intelligent is committed to building a world-class intelligent and digital factory that meets the industrial 4.0 standard for leading enterprises in various industries in China.Infrotronic Intelligent is a state-level high-tech enterprise that has passed ISO9001 system certification and won honorary titles such as Zhejiang Provincial R&D Center, Jiaxing Municipal Technology Center and Jiaxing Pioneering and Innovative Talent Enterprise. Infrotronic Intelligent is the drafting member unit of the national standard for industrial robots and also the drafting unit of the national standard for metal cutting lathes. And has many invention patents and software copyright.Akihito has an international core technology team, bringing in Japanese industrial intelligent technology experts and core technology members from well-known Japanese robot companies. Infrotronic Intelligent has all-round technical capabilities in software, intelligent control, electricity, robots, big data, industrial cloud technology, machinery and precision manufacturing.At present, the company has 50 technicians, including 3 Japanese chief engineers and 10 senior engineers. The company has established long-term cooperative relations with Japan's ALMAC Automation Co.,Ltd. and the Robot Research Institute of Shanghai Jiaotong University.The companys leading products mainly include the design and implementation of automatic processing units, gantry robots, precision lathes, automatic production lines for industrial robots and intelligent factories.Akihito owns Japan OKUMA horizontal machining center, Japan MAZAK vertical machining center, imported large gantry machining center, precision internal and external grinding machine, large gantry milling machine and other large-scale production equipment. the testing equipment includes imported three-coordinate measuring instrument, high-precision laser interferometer, metallographic analyzer and other advanced testing equipment.The products of Zhejiang Infrotronic intelligent machinery technology Co.,Ltd. have been widely used in home appliances, Crankshaftes, precision bearings, gears, automobile transmission axises, brakes, automobile fasteners, wheel hubs, air conditioning compressors, paper making, tobacco and other industries, and have been successfully applied in internationally renowned companies such as SKF of Sweden, SDS of Shanghai, helbice of Germany, ebech of Germany, Shanghai GM, jingxing paper and so on.Infrotronic Intelligent will continue to innovate, introduce advanced Japanese technology, and continue to strive for Chinese enterprises to build industrial 4.0 standard intelligent factories and realize the ambitious dream of Made in China 2025.
Certification certificate
Provincial High tech Enterprise Research and Development Center
·PRODUCTION SITE
