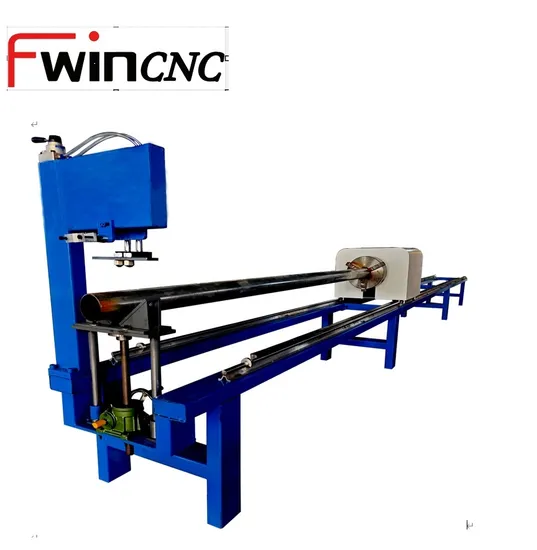

Cheap Price Handrail Bevel Metal Pipe Cutting Machine Tube Factory Price 6000mm/12000mm

Product Description

Factory Price plasma cutting machine metal pipe plate cnc air plasma cutter with rotary
While buying a CNC plasma cutting machine always look out for the specifications that suit your job the best. That means if you want machine for low volume metal cutting tasks then going for portable, compact and easy to use CNC plasma cutter will do better but if bulk metal shaping applications is your criteria then large CNC plasma cutting machines meant for industrial applications can serve your purpose.
Quality is something that you can never compromise while buying a product. So is the case here too. Buy only high quality and easily maintainable machines from reputed supplier so that you can get the best performance with higher outputs from the machine.
Speed and accuracy are very important if you want faster and quality outputs. Therefore speed and accuracy are yet other important considerations while buying CNC plasma cutting machine for profile cutting applications. Just make sure that the CNC plasma cutting machine, you are selecting is an advanced machine with most accurate cutting features with maximum speed possible. It can also have a proper integration with software which will enable speedy production with 100% accuracy.
Machine Features Small type portable mini cnc plasma cutting machine Programmable cutting arbitrary shape parts of line and arc . Dynamic and static graphic display ,easy to learn . Can convert CAD file in computer ,through USB flash drive transmits to machine to realize cutting all kinds' graphs and also can program and operate directly on the machine . Can use flame cutting (gas cutting ) and plasma cutting . Interfaces in English or Chinese can be converted freely . Economical , Portable and easy to operate . Great working stability , Effective shield plasma high frequency interference Available Size:Diameter varies 200mm/350mm/500mm/700mm/800mm/1000mm
Lengh:6000mm/12000mmKindly TIPS:
Being a machine suppliers..offering service -after sales is more important than selling machine itsself..Laterly we have been receiving some potentioal clients that their old supplier disappeared after delivery on machine..The clients are very helpless without their support..So please trust us,
good name or good repulation is our life!!
Long life Portable CNC Plasma Cutter with flame torch

SPECIFICATION
No.	Model FW-ST400*12		for heavy strong round pipe
1	metal pipe		diameter 50mm-400mm
2	Pipe length		12000mm
3	Cutting Mode		Plasma
			flame for option
4	Rotary attachment		chuck diameter 320mm-1pcs
			5 pcs supporting legs
5	Driving and motor		stepper motor to support 1100kgs loading pipe
6	loading capacity for pipe		customerized
7	lifting method		manual
	Controller system		one set of startfire
8	Height controller		startfire 2100
	rotation speed		0.1-25r/min
9	position accuracy		±0.1mm
10	running accuracy		±0.2mm
11	cutting speed		0-6000mm/min
12	Torch height controller		Automatic THC for plasma ZHONGYU 2020
13	input power		220±10%V AC50HZ/60HZ
14	tramsmission method		USB
	Software		HiNest Technology pipe
15	programe software		AutoCAD/CAM
16	Electrical components		CHINT
17	machine size (L*W*H)		14000mm*1400mm*1500mm
18	package size (L*W*H)		8000mm*1400mm*1500mm

Detailed Photos
Service. We have 10 experienced engineers and 1 technical online customer service to supply 18-hour online service. If you have any problems, we can solve them online via skype and whatsapp
Also, remote control service via the software Team Viewer is provided for the customer to install the software and adjust the program.
Different cnc plasma power supply cutting capacity:
Product Application Portable CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.
This gantry plamsa and oxgen gas cutter can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
FAQ for CNC plasma cutting table:
1. Q: Are you manufaturer or trading company?
A: We are a factory with 15 years manufacturing experience.our main products is IGBT inverter air plasma cutter,CNC cutting machine,welding machine,beveling machine.
2. Q: what certificate do you get?
A: CE ,ISO,CCC and SGS.
3 Q:How many days for mass production?
A:15 working days after receipt of remittance.
4 Q:what is your garantee period?
A:1 year.
5. Q:cutting material?cutting range?
A:All kind of sheet metal,aluminum,copper,brass. effective cutting width is 1500mm,effective cutting length is 3000mm.
6 Q:what after-sale service do you offer?
A: 24 Hours Online Service, Free spare parts for breakdown machine in warranty service
7.Q:cutting speed?
A:0-2000mm/minute
8.Q: working voltage?
A:AC220V
