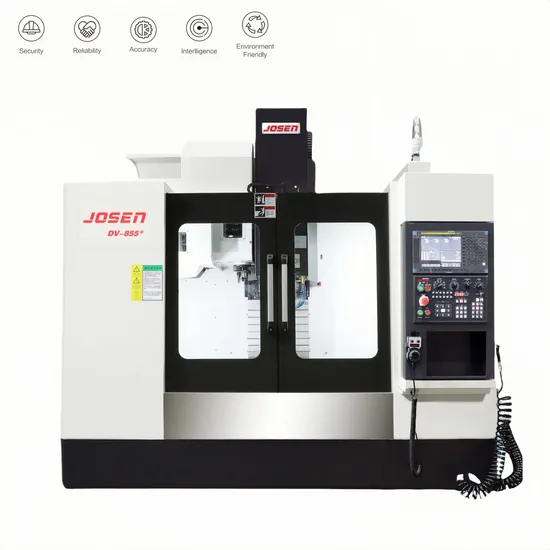

DV-855 Factory Price China Metal Cutting Machining CNC Machine Center Vertical Machining Center CNC Cutting Machining

Product Description

DV-855 Factory Price China Metal Cutting Machining CNC Machine Center Vertical Machining Center
Product Description
Basic Info

Number	Name	Number	Name
1	FANUC 0I-MF CNC controller	10	Chip pan and water tank
2	Full cover shroud	11	Transformer
3	Automatic lubricant system	12	Spindle air curtain dust protection system
4	Ground bolts and spacers	13	Mechanical, electrical and operating instructions
5	Tool-box	14	Rigid tapping
6	Working light	15	Electrical box heat exchanger
7	Warning light	16	Machine cleaning water gun
8	M30 automatic power-off system	17	Three-axis slide telescopic shield
9	Portable chip blowing air gun	18	24-blade arm type tool magazine

Can be loaded into standard containers and will save at least $2000 in shipping costs. Product Specification

Description / Machine Model	Unit	DV-855
Itinerary
X-axis travel	mm	800
Y-axis travel	mm	500
Z-axis travel	mm	550
Distance from nose of spindle to table surface	mm	120-670
Workbench
Working table size (X*Y)	mm	1000*500
Table T-slot size (width * number of slots * spacing)	mm	18*5*80
Max. loading capacity of working table	KG	600
Spindle
Spindle motor (continuous/30 minutes)	kw	7.5/11
Spindle speed	rpm	10-10,000
Spindle inner taper bore		BT40
Three axis
X/Y/Z axis motors	kw	1.8/1.8/3
Feed rate
Rapid feed rate (X/Y/Z)	mm/min	48000/48000/48000
Fastest cutting feed rate	mm/min	1-10,000
Tool change system (optional)
Tool magazine capacity (standard/optional)	set	24
Tool magazine form		Knife arm type
Latin form		MAS-P40-1(45°)
Maximum tool diameter of adjacent tools		Ø80
Max. tool diameter of empty adjacent tool		Ø150
Maximum tool length	mm	300
Maximum tool weight	kg	7
Machine accuracy
Three-axis laser positioning accuracy (JIS6338 actual measurement method)
Positioning accuracy (full stroke)	mm	±0.005
Repeat positioning accuracy (full stroke)	mm	±0.003
System
Controller		FANUC 0I-MF
Oil pressure system
Water tank capacity	liter	220 (rear drainage)
Pneumatic pressure requirements	kg/cm2	6
Electricity
Power Specifications		AC380±10%,3 phase,60Hz/50Hz
Electricity demand	KVA	25
Other
Floor space (L*W)	mm	2500*2800 (rear row)
Machine height (maximum)	mm	2800
Machine weight	T	5.1

Left elevation

Right elevation

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile

Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
