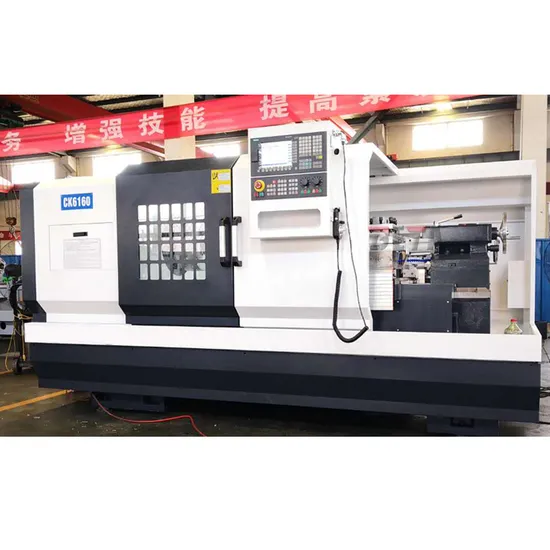

Ck6165e High Quality Heavy Duty CNC Lathe Machine Made in China
Basic Info.
Model NO.
CK6165E
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Horizontal Heavy Duty CNC Lathe
Model
Ck6165e
CNC Controller
GSK
Max.Swing Over Bed
650mm
Max. Turning Length
1000/1500/2000/3000mm
Spindle Bore Diameter
105mm
Chuck
Manual Chuck
Tool Turret
Electrical Turret 4 Station
Delivery Time
1 Month
Warranty Time
12 Months
Guideway
Horizontal Hardened Guideway
Tailstock
Manual Tailstock
Hydraulic Chuck
Optional Choice
Voltage
380V
Color
Customized
Transport Package
Wooden Case
Specification
1000MM
Trademark
BETA
Origin
Shandong, China
HS Code
8458110090
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
3500.000kg
Product Description
CK6165E High Quality Heavy Duty CNC Lathe Machine Made In China
| Model | CK6165E |
| Max. swing over bed | Φ650 mm |
| Max. swing over cross slide | Φ375 mm |
| Spindle bore | Φ105mm |
| Spindle nose | C11 |
| Spindle speed | 10-85/40-350/110-850 rpm |
| Spindle motor power | 11 kw |
| X/Z axis travel | 400mm, 1100/1600/2100/3100 mm |
| X/Z axis torque | 7.5/10(15) N.m |
| X/Z axis rapid feeding speed | 4/5 m/min |
| X/Z axis position accuracy | 0.005 mm |
| X/Z axis repeatability | 0.005 mm |
| Tool bar section | 32*32 mm |
| Tailstock sleeve dia. | Φ100 mm |
| Tailstock sleeve travel | 250 mm |
| Tailstock taper | MT6 |
| N.W. | 3900/4500/5200/6200 kg |
| Machine dimension | 3500/4000/4500/5500*1900*1900mm |
The CNC Lathe through the numerical CNC control system, this flat bed CNC lath could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automaticity, simpler programming and higher accuracy.
Standard accessories:
Flat bed structure, hardened guideway,
Max.swing over bed 530mm,
Spindle bore diameter 90mm,
Distance between points 1000/1500/2000mm,
Spindle motor power 7.5kw,
Three gears mechanical transmission speed adjustment,
CNC controller GSK,
10 inch manual 3-jaw chuck ,
4-way electric toolpost,
manual tailstock,
automatic coolant system and lubrication system,
work light, tools & Tool box, English operate manual
Optional accessories:
Siemens/Fanuc CNC controller,
Hydraulic chuck,
Hydraulic tailstock,
6/8-station turret,
