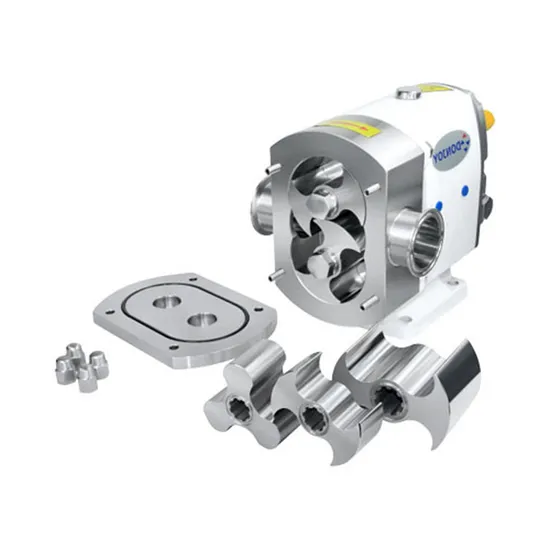

3A Food Grade Sanitary Cheese Rotor Pump with Motor

Product Description

3A Food Grade Sanitary Cheese Rotor Pump with Motor
Typical product application in:
Soup,stew,ketchup,vegetables,condiments,chocolate,fat and oil,cream filling,brewery,juice.
Cream,milk,cheese curd and whey,cottage cheese,yogurt.
Ointment,syrup,extractive,serum,Face Cream&Lotions,Hair Styling Gels&Liquids,Dyes and alcohols,Soap,Cosmetics.
Solvents,paints,fuels,resins,polymers&sludges,oil&lubricants
Hygienic features:
CIP clean and SIP sterilization
Shaft contacting with medium is seal connecting,without exposed screw.
All selections are with seal flush port,could be assembled with double mechanical seal
All parts are in stainless steel,including gear box,not only makes interior highly clean,but also makes appaearance close to no dead band.
Very simple maintenance,no special tools required,no professionals required.
With 3-A ,FDA 21 CFR177.2600 ,CE MD-06/42/EC,EHEDG,Hygiene license,ISO9001:2008 Certification

Inlet & Outlet Sizes	1″-4″ (DN25-DN100)
End Connections	butt-weld, tri-clamp, thread, flange
Body Material	AISI 304 (1.4301), AISI 316L (1.4404)
Body Types	Horizontal Type (TUL) & Vertical Type (TUR)
Mechanisal Seal	single seal (standard), double mechanical seal (option), SIC/C, SIC/SIC
Power Supply	0.75KW-15KW
Voltage	AC110V, 220-240V, 360-400V, 420-460V, 630-690V, 50/60Hz
Maximum Flow Rate	90 m³/h, 395 GPM
Maximum Pressure	174psi, 12ba
Maximum temperature	150ºC/302°F
Maximum Revolution	1450 RPM
Internal Finish	Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.
External Finish	Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default.

3A Certified Stainless Steel Sanitary Rotary Lobe Pump for Beverage Food Processing Pharmaceutical
High Purity, Low Noise
High pressure to 12 bar
Horizontal Type (TUL) & Vertical Type (TUR)
Variety of lobe options: butterfly, single, bi-wing, and tri-lobe.
Hygienic designed according to 3A standard
Sanitary mechanical seal, easy cleaning and maintenance
Applied to CIP cleaning and SIP sterilization
Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable - frequency motor adjustment
3) Fixed speed output transmission
Motor utilize the IEC EN IE2, PTC thermistor.
