4m Remote Hydraulic Road Blocker& Security Roadblock Barrier

Product Description

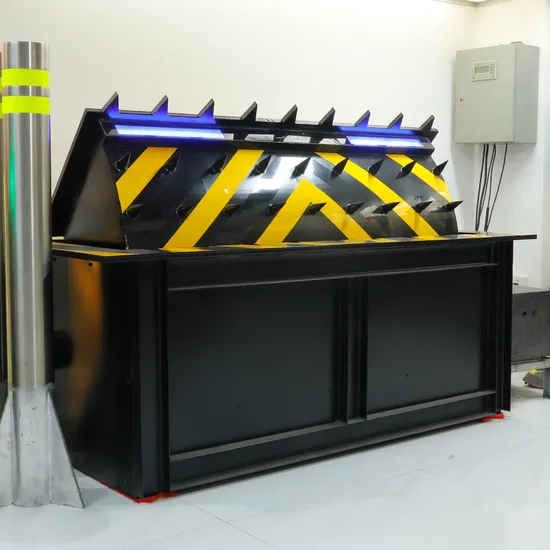

4M Remote Hydraulic Road Blocker& Security Roadblock Barrier
The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted. The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend. After the vehicle passes, the roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards. The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable, strong carrying capacity and stable lifting. The Hydraulic Road Blocker can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements)
Products Description

System Control Mode	hydraulic oil control;	Interception Length	2700
Max.Pressure	80 tons container truck	Control Mode	key /remote control (optional)
System Power	3.7KW / 380 v	Weight	± 1.2Tons
Hydraulic Tank Capacity	60 liter/ 80liter/120liter(can customized)	Lifting Height	500mm
Length	3meters(can customized)	Material Thickness	16mm( thickness can be customized to 20mm,25mm)
Size	3000*1000*760mm(customized availible)	Form A Complete Set	With LED strip with remote controller, hydraulic station, manual pump,control box

Weight:	1.5T
IP rate:	IP68
Buffer time:	0.2-0.5
Remote control distance :	50-100m(According to the environment)
Oil container:	60liter

1, control system: hydraulic (liquid crystal display,english,russian,turkish,spanish,different language menu,
the language is customized).
2, power supply voltage: 380V (control voltage 24V).
3. System Power: 3.7KW
4, pressure capacity: more than 120 tons of container trucks.
5, anti-collision: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
6,protection level: IP68 (dustproof, waterproof)
7,open time: 3~6S (adjustable).
8, closing time: 3~6S (adjustable).
9,communication: RS485 ≤ 1200M.
10,the degree of elevation: 450mm-800mm.
11,working temperature: -45 ° C --- 75 ° C.
12, hydraulic pressure is adjustable, normal pressure should be adjusted below 50KGF, the maximum can not exceed 70KGF.
13, Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.
14, Weight:2200kg-5500kg approx
Production Process:
Product advantages 1,The roadblock has a buffer function
2,LED light with red,blue,green,yellow,purple,white color ,and there is anti-terrorist sign
3,Gang-control interface
4,In case of a power outage, the roadblocks can be manually raised and lowered.
5,Reliable structure, heavy duty load, smooth action, low noise.
6,In rising and falling,reversible operation is available .
7,Device running noise≤60decibel
8,The hydraulic cylinder is double sealed to ensure a waterproof rating
9,Hydraulic drive comes with hydraulic lock
10,Welding cylinder
11,PLC programming command control system
12,Control solenoid valve 24V
13,Lifting solenoid valve 24V
14,The control box displays text adjustable(Up,Down,Action,Time control adjustment)
15,Text display with Chinese and English bilingual
16,PLC built-in encryption system
17,Text display LCD display, Chinese menu, precision start time setting 34,Heavy duty hydraulic cylinders :HOB63-200CA+I Stroke200
Heavy duty Industrial Level
18,Double dynamic double oil pump 2.3ML/time
19,Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose Additional information:
Roadblocks length can be customized.
ising height 500mm, 600mm, 800mm optional
Thickness 10mm, 16mm, 20mm optional
ach roadblocker can be plus LED light l Tubing standard 5 meters
