Frosted Eva Laminated Anti Glare Glass Switchable Blue Window Pdlc Smart Film

Product Description

Product Description
Frosted Eva Laminated Anti Glare Glass Switchable Blue Window Pdlc Smart FilmProduct Description

				Power ON	Power OFF
2.1 Light transmittance:		Parellel light:		>=66%	<=1.5%
		Visible light:	Common Film	>=83%	>=55%
			High Transmittance Film	>=88%	>=57%
2.2 Haze:				<=3%	>=90%
2.3 Response time:				<10ms	<200ms
2.4 Viewing angle:				>=150°
2.5 Voltage:		Input:		AC220V, AC110V, DC24V, DC12V
		Operating voltage:		AC48V
		Threshold voltage:		<=20V
2.6 Frequency:		Operating frequency:		30~400Hz
		Optimum operating frequency:		50Hz
2.7 Power consumption:				<=5W/m2
2.8 Continued opening time:				>80,000h
2.9 Continued ON and OFF times:				>80,000,000
2.10 Insulation Resistance:				>2M Ω
2.11 Operating temperature:				Between -10℃ and 65 ℃.
2.12 Storage temperature:				Between -20℃ and 80 ℃.
2.13 Thickness:				0.65mm
2.14 Max dimension:			Individual piece	<=1.5 * 3.2 meters
			Roll	0.93/1.2/1.5(W) x 20/30/50M(L)
2.16 Adhesion for silicon glue & glass:				20g/mm
2.17 Adhesion for PDLC film:				50g/mm

Detailed Images
Product Uses
PDLC film is used widely in Large command and control dispatch center office, meeting room, negotiation room, special hospital room. Operating room, villa toilet. Shower room, window of entertainment room. Isolation. screen, etc..
Police station, Courts. Prisons. Jewelry shops. Museums. Bank Windows. Curtain walls. Counter. Isolation, etc.. Large special screen projection screen, etc..
Advantages
a) Environmential protection, saving-energy,safety,heat presevation,anti-condensation
b)High UV resistance function, It can block more than 99 % of ultraviolet light. While it does not lose visible light into the room, it isolates a large amount of ultraviolet light to prevent the fading and aging of interior decorations and furniture. It can also protect people from diseases caused by excessive ultraviolet radiation
C) The suitable visible light penetration rate has a certain degree of concealment for outdoor bright light
d) Low solar coverage effectively prevents solar thermal radiation from entering the room
e)High infrared reflectivity, limiting outdoor secondary thermal radiation into the room
f) The extremely high absorption of more solar radiation heat and ultraviolet rays to reduce the transmission of infrared and ultraviolet light, reduce the energy consumption of indoor air-conditioning, heat insulation and energy saving
g) A high degree of safety, when damaged by external forces, will only cause cracks, but will not break down, there is no danger of splashing glass fragments.
h) The privacy protection is transparent when energized, opaque when the power is cut off, light is still abundant under the protection of privacy, and the reception room in the hidden office area is still bright, not only comfortable, but also saving lighting.
Transparency in power, opacity, opacity: fast response, instant privacy within 1/10 seconds
i) Sound insulation features excellent reflection, heat absorption type hollow glass, the middle electric control film and film have sound damping effect, can effectively block all kinds of noise up to 38 decibels, plus hollow, sound insulation effect is even better
j) Projection characteristics: Under the closed state, visible light scattering reaches more than 43 %, and the penetration rate reaches more than 50 %. It can be used as a projection screen in a street mall, playing a good advertising effect. If the projection is in the open state, there is also a three-dimensional ethereal effect
k) Control diversity: hand control, remote control, optical control, audio control, infrared, remote network control
FAQ
Q:Does this need to be installed by an electrician?
A: NO, We can provide you a complete closed system that is ready to install with a plug, it can be DIY by yourself. If you would like to hire an electrician to achieve your goal that is your own decision.
Q:Can I purchase a sample of Switchable Glass ?
A:Yes, we offer samples as your wish.
Q:How does a user control the tint of Smart Glass Film?
A:It can be Switch, Remote, we can offer the suitable transformer & controller for your choice.
Q:Can you cut the film on site....or do you need an absolute measurement from me before the panels are custom made?
A: The material is custom manufactured with special laser equipment to ensure straight cuts however you can cut the material if needed to add a logo, trim etc.
Q:Can we install this film on the top half of the glass only? We were thinking we wanted to keep the existing decals in place and install film from the decal up to the top of the panel.
A:YES - You can install on top half or bottom half only, just be careful for the wiring
Q:Does it block the UV harmful rays?
A: It blocks over 98% of the harmful UV rays in both its energized and non-energized state.
Q:Can we install this product ourselves?
A:YES, we offer complete do it your self kits with practice pieces.
Q:How long will it take for production and delivery..
A: This depends on Material size, total qty order and geographic delivery place.For expedited sample orders, we can ship as fast as 3-7 working days from payment confirmation. If for mass production, it will only last for 7-10 working days approximately.

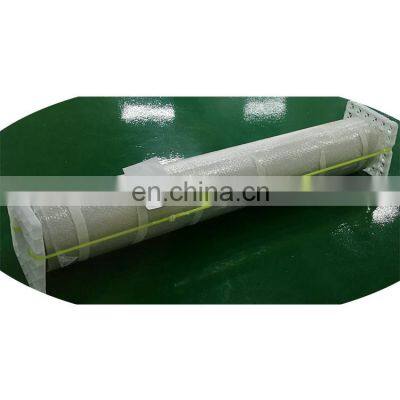

Packaging
