RFID Tag Antenna for Different Design Tag
| US$1.00 | 20 Pieces (MOQ) |
Basic Info.
Model NO.
rfid tag antenna
Gain
15dBi
Material
Nylon / Polyester / PPS / Epoxy
Nature of Operation
Receiving Antenna
Operating Wavelength
Microwave
Polarization
Vertical Polarization
Sturcture Form
Surface Antenna
Usage Occasion
Laundry Garment Tracking
VSWR
1.5~2
Type
Contactless R/W
Operating Frequency
(860~960MHz)
Size
Dia.17mm
Reading Distance
up to 300cm~500cm
Operating Temperature
-25ºC to 120ºC
Storage Temperature
-25ºC to 90ºC
Transport Package
2000PCS/Bag or Other by Customized
Trademark
DAILY
Origin
Guangzhou
Production Capacity
10000 Pieces Per Day
Packaging & Delivery
Package Size
30.00cm * 20.00cm * 20.00cm
Package Gross Weight
0.200kg
Product Description
Product Details:
| Description |

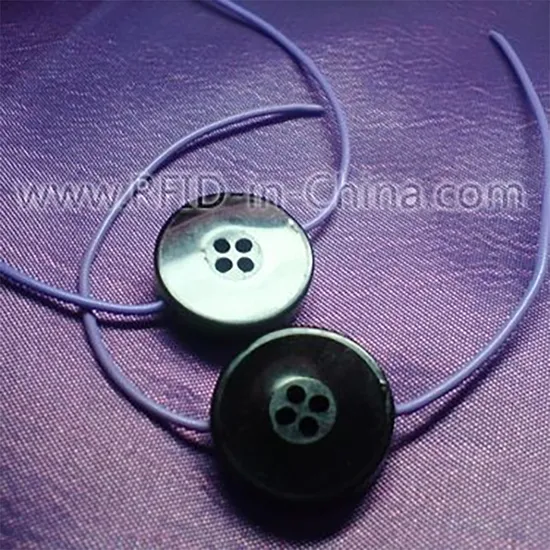

| This button-sized RFID laundry tag is designed for long range laundry garment tracking. It is with four holes in the middle for easy attachment to garment. The small, rugged RFID laundry tag is made of special material to basically meet all requirements in terms of heat, pressure and chemical resistance in the applications of contactless tracking of garments in the textile rental and dry cleaning. |
| Specification |
| l Type: Contactless R/W |
| l Operating Frequency: UHF (860~960MHz) |
| l IC Available at 860MHz~960MHz: UHF EPC Gen2 (EPC CLASS 1 GEN 2) |
| l Size: Dia.17mm, 170mm including the 2 antenna wire, thickness:3.5mm |
| l Reading Distance: Up to 300cm~500cm |
| l Material: Nylon / Polyester / PPS / EPOXY |
| l Simultaneous Identification of Tags: Up to 50 tags per second |
| l Operating Temperature: -25ºC to 120ºC | +150ºC total 50 Hrs | +200ºC total 20 |
| Sec |
| l Storage Temperature: -25ºC to 90ºC |
| l Typical programming cycles at +25ºC: 100, 000 |
| l Typical Data retention time at +55ºC: > 10 years |
| Competitive Advantage |
| 1. Waterproof IP 68 |
| 2. Simultaneous Identification of Tags: Up to 50 tags per second |
| 3. Reading Distance: Up to 300cm~500cm |
| 4. Data retention time at +55ºC: > 10 years |
| 5. 100, 000 times reading & writing |
| 6. Exceptional temperature and harsh environmental performance |
| DAILY RFID is able to design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirement. For more info about RFID products please kindly visit our website china-rfid.en.made-in-china.com or email us , we will contact you as soon as possible. |
| Remark: |
| 1. Specifications are subject to change, please pay attention to our latest one. |
| 2. DAILY RFID reserve the right to the final interpretation of the above terms. |
