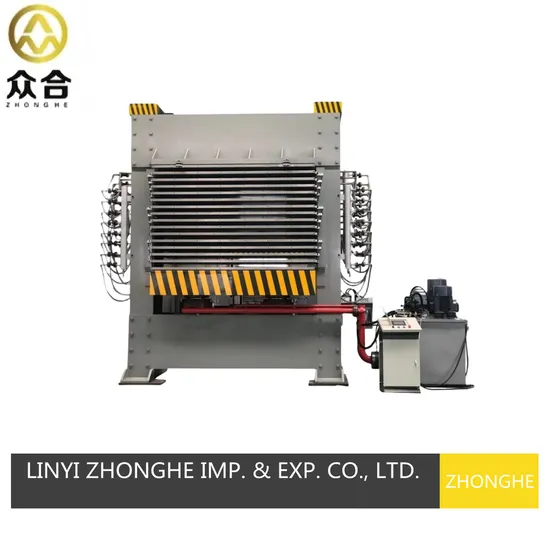

15 Layers Plywood Hot Press Machine with Auto Loading Device

15 Layers Plywood Hot Press Machine with Auto Loading Device

US$33,381.00
5-9 Sets
US$33,351.00
10+ Sets

Basic Info.

Model NO.
BRY21-4*8-600T-15L
Type
Hot Press
Automatic
Automatic
Certification
CE, ISO
Usage
Laminating Film Paper Onto Plywood
Warranty of Core
1 Year
Place of Origin
Shandong, China
Key Selling Points
Easy to Operate
Pressure
100tons
Transport Package
Nude Packing
Specification
600Tons, 15 layers
Trademark
ZHONGHE
Origin
China
HS Code
847930000
Production Capacity
2 Sets/Month

Packaging & Delivery

Package Size
3560.00cm * 1370.00cm * 4790.00cm
Package Gross Weight
38500.000kg

Product Description

Product Description
1.Pressure:400t / 500t / 600t / 800t / customize
2.The size of the press plate: 3'x6' / 5'x5'/4'x8' / customize
3.Heating medium:thermo oil / heat steam
4.Control system:automatic / manual Automatic control are carried out by PLC control,which use big size touch screen to operate.
5.Structure:The whole structure adopts thicken steel sheet.
6.Hot press plate:42mm

Product Parameters
No. Model BRY21-4*8-600T-15L
1 Hot press plate size 2700*1370*42 mm 15 sheets
2 Opening size 100 mm
3 Hydraulic pistons 4 units, diameter 280mm
4 Pressure Capacity 600 Tons
5 Hydraulic System hand and automatic control
6 Hydraulic System allowed pressure 25 M pa
7 Low pressure Pump 250 ml/rev,11KW motor
8 High pressure Pump 10 ml/rev, 5.5KW motor
9 Heating Medium Steam or Heat Transfer Oils

Detailed Photos
Hot press is one of the most important machines in the production of wood-based panels, which directly determines the production efficiency and quality of wood-based panels.

Company Profile
Linyi Zhonghe Imp. & Exp. Co., Ltd.is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and ma-chine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications
Complete certification

Packaging & Shipping
<1> Before Order ship, our engineer will test machine make sure it is in good condition.
<2> When loading, we will share pictures with you.
<3> After ship leaving, we will offer container and ship information for your reference.
<4> Offer all documents for you do custom clearance.

Frequently Asked Questions

1. What products does your company offer?
Our company specializes in manufacturing and supplying equipment for the plywood and veneer industry. Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
2. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
3. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
4. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
5. Which countries do you frequently export to?
We regularly export to various countries, including:
• Brazil (where we have local distributors)
• Argentina
• Paraguay
• Fiji
• Pakistan
• Bulgaria
• Ghana
We have experience working with these countries and can arrange shipping and handling in compliance with local regulations.
