6-12m Scissor Lift Table Manual Lifting Platform Aluminum Mast Lift Platform Hydraulic
Basic Info.
Model NO.
YG100
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Vehicular
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Transport Package
Plywood Case
Specification
500kg
Origin
China
Product Description
Basic Info.Model NO.
YG100
Application
Workshop Crane, Warehouse Crane, Building Crane, Work Lift
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Working Height
6m 8m 10m 12m 14m 16m 18m
Extend Platform
900mm
Package
Plywood Case
Grade Ability
25%
Material
Steel
Transport Package
Export Packing
Specification
500kg
Trademark
YG
Origin
Henan
HS Code
8428909000
Production Capacity
300PCS / Month
Packaging & Delivery
Package Size
150.00cm * 140.00cm * 140.00cm
Package Gross Weight
900.000kg
Product Description
Factory direct sale of various aerial work platforms for sale and rental

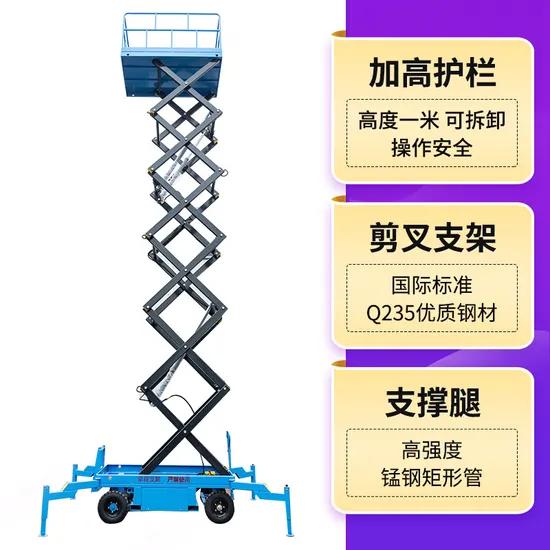

Portable scissor lift platform is widely used for aerial working,it has the advantage of self-propelled,small volume,high workingefficiency etc. It has walking and lifting function,with the control handle to control the direction of running,speed can beadjusted,equipped with a brake device,battery driven DC motor running and movements,you can also choose AC motor or diesel enginerunning and movements,it also can use wireless electronic remote control movements,without the need for manual traction and doesnot need an external power supply,flexible and convenient in movement,it is ideal product for aerial working.
Product Description
Recommend machine
Product Parameters
| Model No. | YG400 | YG600 | YG800 | YG800A | YG1000 | YG1000A | YG1200 | YG1400 | YG1600 |
| Machine Length(m) | 1.47 | 1.86 | 2.48 | 2.48 | 2.48 | 2.48 | 2.48 | 2.48 | 2.85 |
| Machine Width(m) | 0.76 | 0.768 | 1.19 | 0.83 | 1.19 | 0.82 | 1.19 | 1.19 | 1.25 |
| Load(kg) | 240 | 230 | 450 | 320 | 450 | 230 | 320 | 320 | 230 |
| Max. Platform height(m) | 3.9 | 5.8 | 6 | 6 | 8 | 8 | 10 | 11.8 | 13.7 |
| Working height(m) | 5.8 | 7.8 | 8 | 8 | 10 | 10 | 12 | 13.8 | 15.7 |
| Platform extension size(m) | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Platform size(m) | 1.34X0.7 | 1.67X0.74 | 2.27X1.12 | 2.27X0.81 | 2.27X1.12 | 2.27X0.81 | 2.27X1.12 | 2.27X1.12 | 2.64X1.12 |
| Batteries(V/Ah) | 2X12/105 | 4X6/225 | 4X6/225 | 4X6/225 | 4X6/240 | 4X6/225 | 4X6/240 | 4X12/300 | 4X12/300 |
| Charger(V/A) | 24/15 | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Max.working slope | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Overall weight(kg) | 890 | 1460 | 2170 | 2090 | 2360 | 2260 | 2640 | 2980 | 3600 |
