US$1,200.00-1,300.00
|
1 set
(MOQ)
|
Basic Info.
After-Sales Service Provided
Video
Max Working Area
1200X1500mm
Working Air Pressure
0.40-7MPa
Transport Package
Wooden Case
Production Capacity
5000PCS/Year
Product Description
Product Code | 008008 |

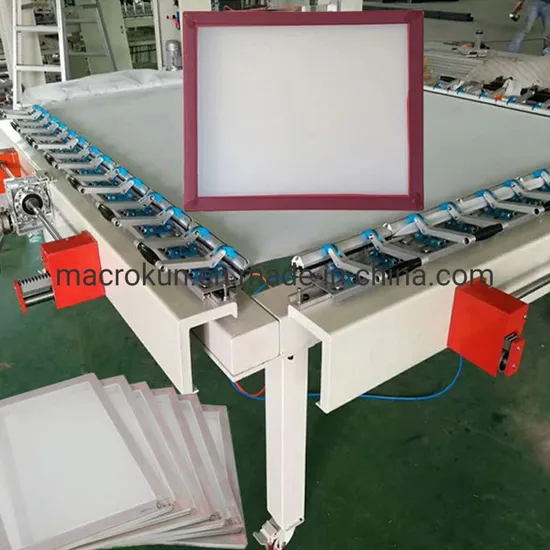

Product Name | M&K-1215 Dw Double Clamp Worm Screen Stretching Machine |
HS code | 8442302900 |
Max working area | 1200x1500mm |
Maximum tension | 45N |
Working air pressure | 0.40-7MPa |
Net weight | 230KG |
Gross weight | 250KG |
Packing size | 170*60*60cm |
Packing volume | 0.61m³ |
Packing material | Export wooden case |
The beam with 1200*80mm special square tube production, tension up to 45N, long-term high tension pull the net beam is not deformed. Built-in track skateboard, four sides of the beam can be movable type, flexible and convenient to shrink, according to the size of the network frame to adjust the net area, effectively save the yarn.
The use of material system pull net chuck, chuck base plate with 45 thick steel plate bending welded together, can withstand long-term high tension, chuck with the import of rubber strips, do not fall of, do not hurt the mesh, not retreat.
The use of Taiwai imported turbine rod gear box drive, the use of gears, racks and linear bearings do travel guide, changing the traditional chain drive, this design is more evenly, higher precision, pull the net more light.
With four synchronous top mesh cylinder, so that when the network to ensure quality.
