Hot Sales Crawler Rice Combine Harvester Top Supply High Power

Product Description

Product Parameters

Model		4LZ-6
Horsepower		109HP
Dimensions(L*W*H)(mm)		5860*2620*2930
Weight(kg)		3785
Cutting width (mm)		2300
Track	Track specification (mm)	90*53chains*500
	Track gauge(mm)	1250
Cab type		Awning or AC Cab
Production efficiency	Productivity(hm²/h)	0.3-1
	Fuel consumption(L/hm²)	≤41
	Mini clearance(mm)	300
Thresher	Grain tank(m³)	2.2
	Threshing pattern	Longitudinal axial flow
	Grain unloading drum height(mm)	3700
	Threshing drum size(mm)	Φ620*2200

Detailed Photos

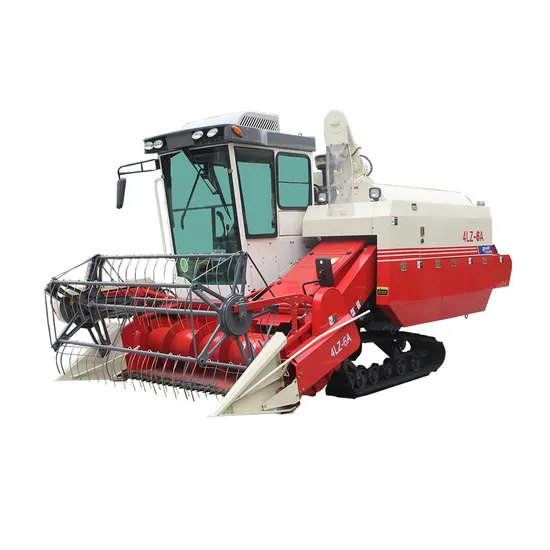

4LZ-6 type crawler grain harvester uses longitudinal axis flow roller threshing separation technology and can harvest rice and wheat. It is also equipped with rapeseed, corn, and millet harvesting devices.
Product Description
More detailed technical information about 4LZ-6
Optionally equipped with plate type divider and "mouse cage" divider, wide crop adaptability, especially for inclined crops, reducing header losses; The spring gear tube is equipped with a protective cover to effectively prevent entangling grass; The design of the lifting and rotating header is optimized, and the bridge is extended to solve the problem of low-cutting header (harvesting fallen crops) and the problem of high-point passability of the header. The tip bottom of the header blade guard is 40 mm below the horizontal ground, and the high point is 1000 mm from the horizontal ground. The bridge feed inlet is optimized, with floating wheels, which can be freely adjusted according to the feeding amount to improve the conveying passability. The bridge is equipped with a turn-over device to quickly deal with the blockage fault; The grain separation chamber feed opening uses an arc shaped stainless steel plate for its strength and wear resistance; Equipped with an efficient grain separation cleaning system, the grain roller is 2.0 meters long, and uses a new style cleaner fan and adjustable angle fish scale clean screen, with strong crop processing capability and systematically solving the problems of poor feeding and high cleaning losses; High clearance chassis matching, the minimum ground clearance can reach 330mm, improving the resistance to sinking and offering the option of chains for improved water field throughput and adaptability; Equipped with famous and high-quality National III engine, it has strong power, high operating efficiency and low fuel consumption; Using the original imported hydraulic transmission,equipped with the 80 gearbox, fast speed, flexible steering, and good maneuverability; The new operator panel is unobtrusive and comfortable to operate, more in line with human-machine engineering; waterproof electrical components, long service life, and recessed start switch installation to prevent inadvertent collision or engine shutdown; Optionally equipped with two straw processing methods, widely suited to different regions; Optionally equipped with rape seed, corn, and millet harvesting devices, strong adaptability, and realizing multiple uses with one machine.
