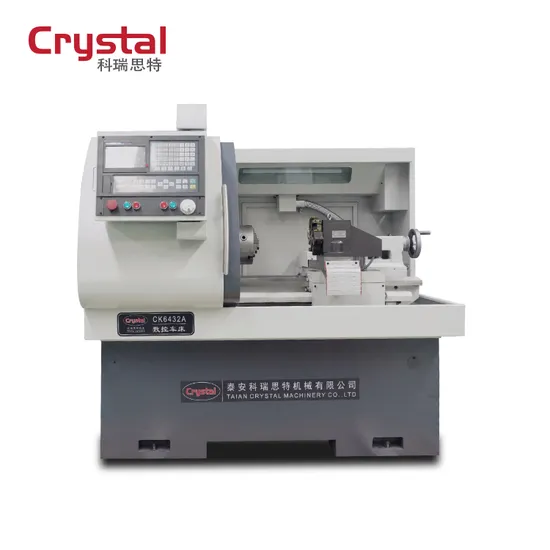

New High Speed Automatic Bar Feeder Metal CNC Lathe Machine Specification Ck6432A
| US$9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6432A
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Place of Origin
China
Machine Type
CNC Lathe Machine
Material
Cast Iron
Advantage
Cheap Price/ Good Quality
Processing Type
Metal
Motor Type
Servo Motor
Power Supply
Three Phase 380V/ 50Hz
Transport Package
Wooden Case
Specification
CE, SGS
Trademark
Crystal
Origin
China
HS Code
8458110090
Production Capacity
30sets/Month
Product Description
The currency exchange rate fluctuates greatly,please consult customer service for the best price.
This machine is widely used in processing and manufacturing the electrical appliance, instrument industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.
| Items | Specifications |
| Max. swim over bed | Φ360mm |
| Max.swim over carriage | Φ150mm |
| Max.length of work piece | 450mm or 700mm |
| Range of spindle speed | 150-2500rpm |
| Spindle bore | Φ60mm |
| Spindle drawn tube diameter | Φ48mm |
| Taper of spindle bore | MT6 |
| Stations of tool carrier | 4 or 6,8 |
| Max.size of tool post | 20mm×20mm |
| Min.setting unit of motor | (Z) 0.001mm (X) 0.001mm |
| Moving speed of post | (Z) 8 m/min (X) 4 m/min |
| Taper of tailstock quill | MT4 |
| Max. range of tailstock quill | 100mm |
| Motor power | 4KW |
| Packing size (mm) | 1600/1850×1100×1550mm |
| Net weight/gross weight | 1200/1300 1300/1450kg |
