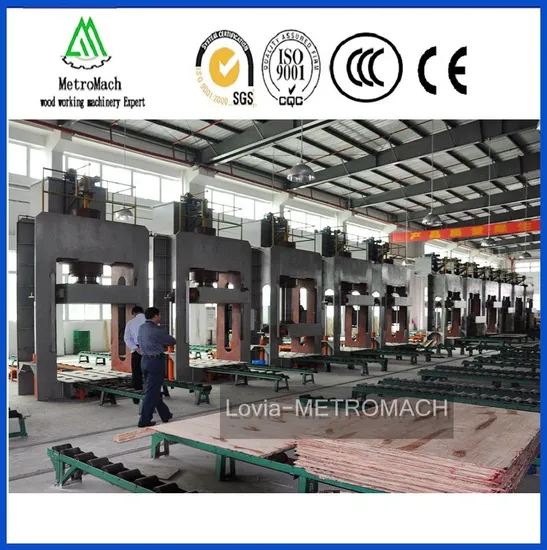

500ton Hydraulic Pre-Press Machine for Plywood Cylinders Downsides

Product Description

1. Cold Press machine, also know as Pre-press machine, is an essential equipment in the production of plywood,blockboard etc.
2. It helps to shorten the cycle time of hot press, and initial shaping of glued veneers.
3. Two working ways for option, one is cylinders on top, another is cylinders downsides.
4. Strict quality control, Good quality NO.1 standard steel plate, Top hydraulic unit system, Wuxi solid cylinders, no oil leakage.
Technical Parameters
Various pressure:400T/500T/600T even higher is available.
Pressing size: 3x6ft, 4x8ft, 5x5ft etc.
Take 500Ton 4x8ft plywood prepress for example:

Model	BY814X8/4-IIZ
Nominal Gross pressure	5000KN
Direction of feeding	Horizontal
Opening	1600mm
Main Cylinders	2xφ360mm x 1000mm, downsides
Size of workingbench	2700x1380mm
Unit pressure	16kgf/cm2
Allowed pressure	<25Mpa
Control method	Automatic pumping station
Machine weight	17000kgs
Chain roller conveyor	Yes,optional

Packing and Shipping
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
