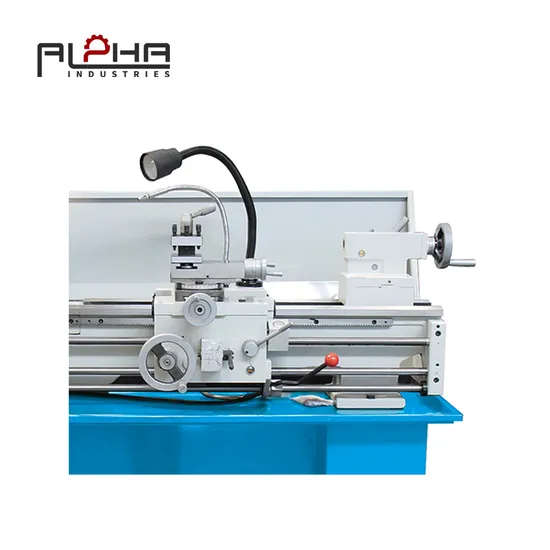

Hot Selling High Precision Lathe Heavy Bl-1236A Bench Lathe Turning Center in Europe

Product Description

Product Parameters

Basic Info.
Model NO.	BL1236
Controlling Mode	Artificial
Setting Mode	Floor-type
Certification	CE, ISO 9001
Specification	1700x750x720mm
Origin	China
Power Source	Electric
Automatic Grade	Manual
Precision	High Precision
Condition	New
Trademark	Alpha industries
Production Capacity	100 Sets/Year

Technical Parameters

Model No.	Unit	BL1236	BL1236 Vario
max. swing over bed	mm	Ø320(12.60")	Ø320(12.60")
max. swing over cross slide	mm	Ø180(7.09")	Ø180(7.09")
max. swing over gap	mm	Ø450(17.72")	Ø450(17.72")
distance between centers	mm	750/910(29.53"/35.83")	750/910(29.53"/35.83")
width of bed	mm	181(7.13")	181(7.13")
spindle bore	mm	Ø38(1.50")	Ø38(1.50")
taper of spindle bore		MT5	MT5
ranger of spindle speeds	rpm	65~1810(1400)	65~1810(1400)
taper of tailstock		MT3	MT3
mertic threads can be cut	mm	0.4-7(0.02"-0.28")	0.4-7(0.02"-0.28")
inch threads can be cut	TPI	4~60	4~60
range of longitudinal feeds	mm/rev	0.0527~1.2912	0.0527~1.2912
range of cross feeds	mm/rev	0.011~0.276	0.011~0.276
max. travel of crass slide	mm	130(5.12")	130(5.12")
max. travel of top slide	mm	75(2.95")	75(2.95")
max. travel of tailstock quill	mm	100(3.94")	100(3.94")
motor power	kW	1.1 3PH/1.5 1PH	1.1 3PH/1.5 1PH

Standard Accessories

3-jaw chuck	Hange gears set	MT3 dead centers	Tool box & tools
Oil gun	Splash guard	MT5/3 reduction sleeve	Steady rest
4-jaw chuck	Face Plate	Following rest

Optional Accessories

Work light	Foot brake system	Digital readout(2/3 axis)	Cutting tools
Lead screw guard	Chuck guard	Quick change tool post	Clutch for feed rod
Live center	Micro stop	Stand+Oil tray	Tool post cover

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
