NDT Concrete Slab Thickness Tester

Product Description

Product Description

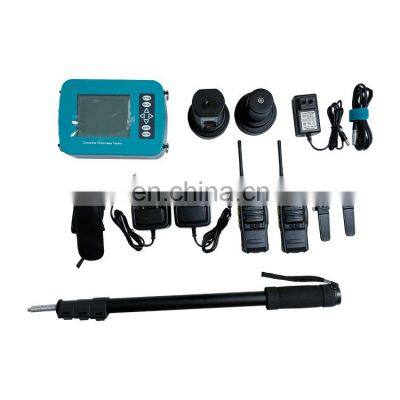

Product Usage and Features LBY Concrete Floor Thickness GaugeLBY Concrete Foor Thickness Detector is a portable non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media. When used, the transmitter and receiver probes are placed on the two relative test surfaces of the Concrete, respectively, transmitting and receiving electromagnetic fields. The instrument transmits and receives electromagnetic fields according to the received signals. Strength, test Concrete thickness.1.Adopt three anti-shell design, waterproof, dust-proof and shock-proof. 2.Upgraded wireless cloud transmission function.3.Separate design of probe and main engine facilitates on-site measurement and use by operators.4.Store the measurement results of floor thickness according to components.5.Simple and easy to use, with perfect measurement, storage and analysis functions.6.Large TF card storage capacity, intuitive and convenient transmission.7.Stored data is transmitted to computer through USB interface.8.Use Windows software to analyze data and generate test reports.Technical ParametersModelGTJ-LBYThickness test range40mm~800mmTest accuracy40~500mm (±1mm)501~600mm (±2mm)601~700mm (±4mm)701~800mm (±8mm)Storage capacity200 Components *30,000 Measuring pointsHost ParametersScreen size: 5 inch LCD resolution: 160*128Volume: 195*140*45mmWeight: 0.8KGsPower suppyBoth host and transmitter probes are built-in lithium batteryWorking environment requirementsTemperature: -10℃ ~ +40℃ Humidity： ＜90%RHNon-strong alternating electromagnetic fieldNo long direct sunshinePacking SpecificationMaterial: engineering plasticVolume:420*140*335mmWeight: 6.5KgsDetailed ImagesCompany IntroductionCangzhou Lovely Technology Co.,Ltd. It is a growing company with over 12 years of experience in China, is the leading manufacturer and supplier of testing equipment used for evaluating construction and civil engineering materials. We design and manufacture all machines and accessories either by our self or in close cooperation with long-term partners.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc. Packing & DeliveryAfter Sales ServiceFAQQ1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
