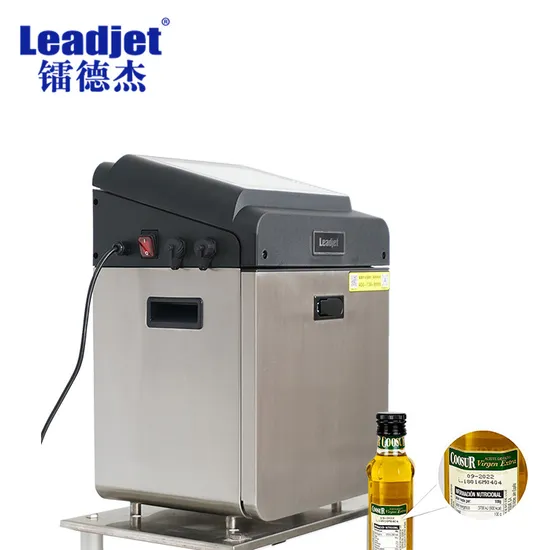

V8820 10 Inch Touch Screen Cij Printer Linux System Multilanguage

Product Description

Product Description
V8820 62u nozzle multi-languages inkjet coding machine
Speicfication

CIJ Inkjet Printer			V8820
Max Print Speed			300m/min (5*7 dots)
Printable Font Height			1.5 mm~20mm. Maximum can be widened 9 times
Dot Matrix			25 * 25 dot matrix
Memory Capacity			Up to 1000 messages
Printing Line			Within 3 Lines
Printer Content			Time, Date, Lot No, Serial No. Code128, Code39, EAN13; QR Code, Datamatrix, etc.
Operate Interface			Multi-languages:English, Spanish,Russian, Farsi, Arabic, French, German, etc
Print Material			Metal, plastic, glass, wood, tube, electrical wire, cable etc.
Print Distance			Max: 30mm, from printhead bottom to substrate surface
Ink Color			Yellow, Black, blue, red etc
Ink Consumption			70 million character per liter
Power			AC220V /380V 50HZ 100W
Conduit Umbilical			2.7m (Customizable)
USB and RS232 Port			With USB port and RS232 port
Environment Temperature			5ºC-45ºC
Humidity			Below 90%
Machine Dimension			387 * 270 * 507mm
Package in wooden dimension			625 * 455 * 730mm
NW,/GW.			30kgs / 40kgs
Display and Keyboard			10-inch full-color high-definition touch screen,and full-touch virtual keyboard

Feature
1. Multi-languages inkjet printers
2. Improved stability, easier maintenance
3. Intelligent ink system
3. Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK, QR CODE
4. Easy to be integrated at any position of the production line
5. User-friendly interface and most reliable ink system
6. Easy to operate and can trouble-free run a long time
7. USB Port for logo and other complicated printing contents
8. Economic and can satisfy most printing requirements

Hydraulic system
1.Full automatic viscosity and pressure control
2.Error proofing design to differentiate the ink and solvent
3.Electronic control system completely separated the design from the hydraulic system

Print Head
1.Compatible design, maintenance friendly
2.Ruby nozzle and difficult to be blocked
3.Nozzle Size: 62 μm standard, 52 to 70 μm optional
4.Can be installed in any position
5.Integrated design and Easily accessible

Packaging & Shipping
Application
Company Information
Exhibition

FAQ Q:Are you a factory or trading company?
A:Founded in 1997, and located in Wuhan, Leadjet is an integrated industrial and trade enterprise that has 31 branches and offices all over China. We sincerely invite you to visit our enterprise!
Q:Is your machine available for my product?
A:Show us your product and the content you want to print on, and we can print on the sample and send the video to you. And you can also deliver your sample to us, we print the sample and deliver it back to you. The freight shall be borne by the buyer.
Q:I have never operated an inkjet printer before, is it easy to operate?
A:We will provide English Service Manual and you can also view our Youtube about the operating video, there is no problem for you even if you didn't know it before.
Q:What if the machine is broken?
A:We will solve your problem in three steps:
1,Please take a video of the problem for us.
2,Our professional after-sales engineer will test the problem and provide you with a solution.
3,It's available to free-replace spare parts within the guarantee period, and we can also provide you with related videos of replacement.The freight of spare parts shall be borne by the buyer.
Q:What about your service?
A:We offer 7*24 hours online service, please contact us
