Universal Tensile Torison Strength Tension Compression Bending Testing Machine for Fiber Optics Fabric Rebar Rope Plastic Rubber Wood Film Spring Textiles Test

Product Description

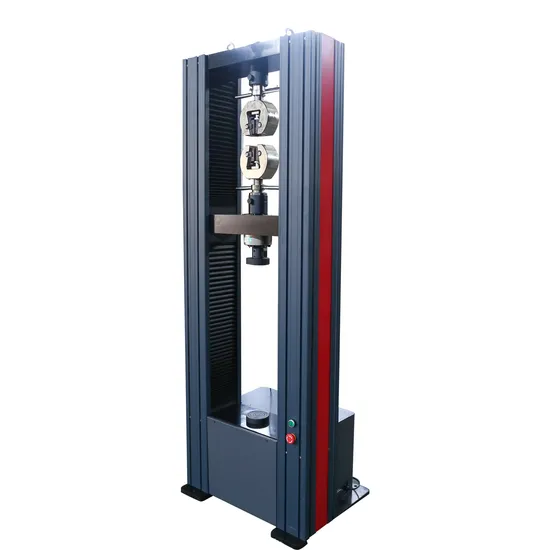

5kn /10kn /20kn Electronic Universal Testing Machine

1.Application
Microcomputer-controlled universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
2.Features
1) Computer + Software control and display 6 kinds test curves: Force-displacement, force-deformation, stress-displacement, stress-deformation,force-time,displacement-time
2) Can be installed extensometer to test deformation of rubber or metal material
3) Can do high temperature test by high temperature oven and furnace
4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5) Can be customized height, width, and follow any test standard or customer request
6) Also have Digital Display Type.

Model	WDW-5/10/20
Max. load force	5KN 10KN 20KN
Crosshead Travel(mm)	1000
Effective tensile space (mm)	700
Effective Test width (mm)	400
Crossbeam travel speed(mm/min)	0.001-1000
Load accuracy	Class 1 (class 0.5 optional)
Load range	1%-100%FS (0.4%-100%FS optional)
Load resolution	1/300000
Round specimen clamping range(mm)	4-9
Flat specimen clamping range(mm)	0-7
Tensile grip	Customized
Compression Plate(mm)	Φ100x100 mm
Electronic Extensometer for metal material	YUU10/50 (optional)
Large deformation extensometer for rubber	DBX-800 (optional)

FAQ
1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
