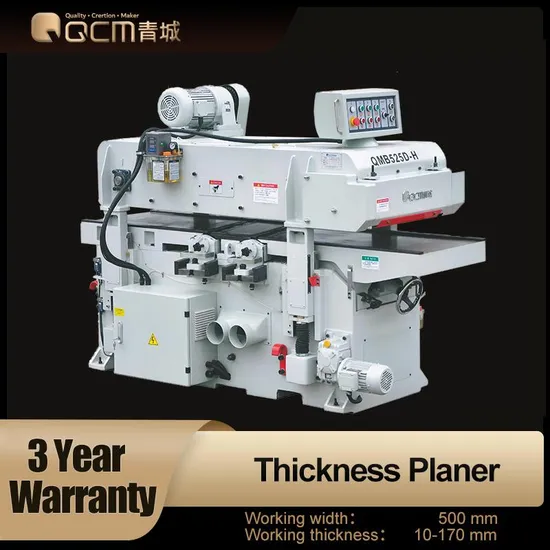

QMB525D-H Woodworking Industy Single Side Planer and Thicknesser

Product Description

QMB525D-H Single Side Planer Made In China Factory Manufacture Supplie Wood Single Press Planer Thicknesser Product Parameters

Technical Parameter
Model	Double side planer, 2 side surfacer moulder	Unit	QMB525D-H
Specifications	Working width	mm	500
	Working thickness	mm	10-170
	Min.working length	mm	245
	Max Top cutting depth	mm	5
	Max Bottom cutting depth	mm	0.8
	Spindle cutting dia	mm	Φ101
	Feeding speed	m/min	6-30
	Spindle speed	r/min	5800
Motor Power	Total power	kW	12.45
	Feeding motor	kW	2.2
	Lifting motor	kW	0.75
	Top spindle motor	kW	5.5
	Bottom spindle motor	KW	4
Pressure & Diameter	Suction hood dia	mm	2*Φ150
Dimensions & Weight	Overall dimensions	mm	2260*1030*1600
	Weight	kg	2250

Product Main Features
1. This machine adopts integral casting body with stable performance, good precision and good rigidity.
2. The entire Cast Iron - Chromed In-feed table is normalization heat treated for maximum stability. In-feed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.
3. The upper and bottom cutter head are equipped with imported heavy-cutting spiral cutter, which have been dynamically balanced and equipped with ternational brand bearings for precision assembly, with stable performance, good accuracy and good durability.
4. The pressure spikes are in an overlapped layout with a minimum of gaps that hold the workpiece firmly and evening ensuring shake-free feeding, even for short workpiece.
5. The thickness of cut can be controlled by a digital positioning control. Once the preset position is reached, the table elevation stops automatically.
6. The automatic lubricator delivers frequent lubrication oil to the chain.
7. Reduce wear caused by temperature rise and improve efficiency of power transmission.
8. Siemens and Schneide electrical products and appliances insure the whole machine run well with a stable performance.

Product Description
Company Profile
About US
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.
