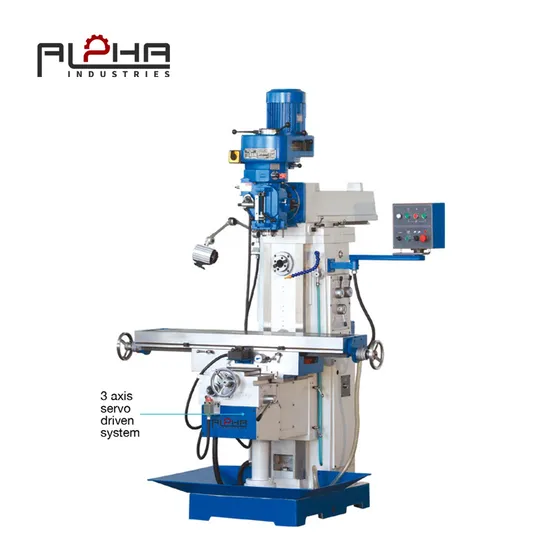

Mh6330 Low Price Wholesale Mh6330 Milling Machinewith Cooling System

Product Description

STANDARD ACCESSORIES
• Drill chuck/Drawbar/Work lamp/Milling vice
• Coolant system/chip tray
• X-axis mechanical power feed (MH6332)
• Y-axis mechanical power feed (MH6332)
• Toolbox&tools
• Operation manual/Quality certificate
• Packinglist

OPTIONAL ACCESSORIES
• DRO
• Vise
• Milling collet chuck
• Rotary table
• Dividing head
• 58 pcs clamping kits
• Keyless drill chuck
Product Parameters

SPECIFICATIONS
Model No.	Unit	MH6332B	MH6332C	MH6332Z	MH6330	MH6330A
table size	mm	1120×260	1270×320	1320×320	1270×300	1370×300
table travel(X,Y,Z)	mm	600/270/300	780/300/380	800(750)/300	720/300/400	820/300/400
number/width/distance of T-slot	mm	3/14/63	5/14/70	5/14/70	3/14/80
arm travel	mm	-			450
spindle taper		ISO40			3HP:R8 or ISO30; 5HP:ISO40(V,ISO40(H)
table feed (X,Y,Z)		-	-	-	variable
distance between spindle nose and table surface	mm	100-400	150-500	150-550	75-475
distance between spindle axis and ram surface	mm	-	-	-	200
distance between spindle axis and column surface	mm	100-650	150-550	200-780	-
spindle travel	mm	127	127	120	-
spindle speed range	r/min	48-130	70-3620(V) 60-1350(H)	90-2000(V) 40-1300(H)	43-3225 65-4660(16 steps) 12 steps 35-1500
spindle motor pOwer	kW	2.2	3.7(V)2.2(H)	2.2(V/H)	-
main motor pOwer					3HP or 5HP
overall dimension	mm	1710×1480×1000	1720×1520×2225	1710×1720×2330	1720×1680×2350	1820×1680×2350
G.W.	kg	1350	1650	2000	1650	1700
