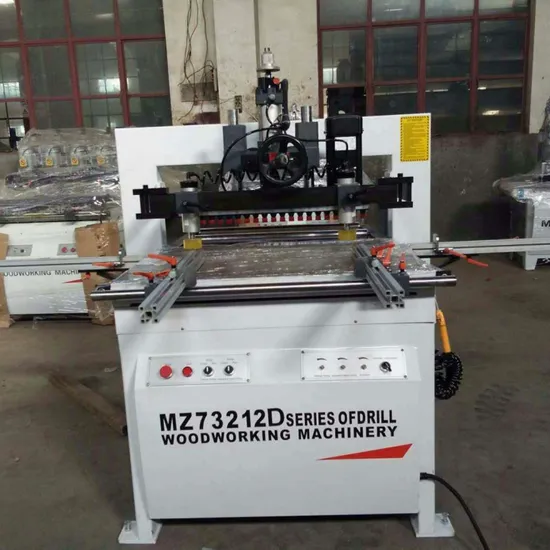

Automatic Small Double Head Horizontal Woodworking Drilling Machine
| US$2,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MZ73212D
Controlling Mode
CNC
Number of Shaft
5
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Maximum Diamenter of Holes
35mm
Depth of Drilled Holes
0-60mm
The Number of Spindles
42
Center Distance Between Spindles
32mm
Maximum Dimensions of Piece
2500*920*70mm
Rotation of Spindle
2840r/Min
Total Motor Power
3.0kw
Suitable Voltage
~380V
Air Pressure
0.5-0.8MPa
Overall Size
1900*2600*1600mm
Transport Package
Wooden Case
Specification
2.4CBM
Trademark
QDZD
Origin
Qingdao
HS Code
84659500
Production Capacity
500sets/Year
Product Description
Automatic small double head horizontal woodworking drilling machineTechnical Specification:
| Max. diameter of holes | 35 mm |
| Depth of drilled holes | 0-60 mm |
| The number of spindles | 21*2 |
| Center distance between spindles | 32 mm |
| Rotation of spindle | 2840 r/min |
| Max dimensions of piece to be drilled | 2500*920*70 mm |
| Total power | 3 kw |
| Air pressure | 0.5-0.8 Mpa |
| Gas consumption of drilling 10 panels per minute | 10L/min approximately |
| Suitable voltage | ~380 V |
| Max distance of the two longitudinal heads | 380 mm |
| Min distance of the two longitudinal heads | 0 mm |
| Height of working plat form off ground | 900 mm |
| Weight of the whole machine | 500 kg |
| Over size | 1000*650*1550 mm |
Product Details:
Certificate:
Our Services: (1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
