CNC Screw Milling Machine for Plastic Mechanical Extruder with Chip Removal Machine

Product Description

Device name:CNC screw milling machine for plastic mechanical extruder with chip removal machine

Product Name	CNC screw milling machine for plastic mechanical extruder with chip removal machine
Working Process	Turning, deep stamping, bending, punching, threading,welding, tapping, riveting
Material	Black derlin, POM, Aluminum, copper, brass, stainless steel, steel, iron, alloy, zinc etc.
Surface Treatment	Zn-plating, Ni-plating, Cr-plating, Tin-plating, copper-plating, the wreath oxygen resin spraying, the heat disposing, hot-dip galvanizing, black oxide coating, painting, powdering, color zinc-plated, blue black zinc-plated, rust preventive oil, titanium alloy galvanized, silver plating, plastic, electroplating, anodizing etc.
Main Products	Precision screw,bolt, nuts,fastener,knob,pins, bushing, sleeve,gear, stamping parts, washer,gasket,plastic molding injection parts,standoff,CNC machining service, accessories etc.
Management System	ISO9001 - 2008
Available Certificate	RoHS, SGS, Material Certification
Main markets	North America, South America, Eastern Europe , West Europe , North Europe, South Europe, Asia
Usage	All kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, power switches, miniature switches, architecture, commodity and A/V equipment, hardware and plastic molds, sports equipment and gifts, and more
Quality Control	Conducted by ISO9001-2008 SGS IAF,etc
Applications	Toy,Automotive, instrument, electrical equipment, household appliances, furniture, mechanical equipment, daily living equipment, electronic sports equipment, light industry products, sanitation machinery, market/ hotel equipment supplies, artware etc.
Machining equipment	CNC turning lathe, Full automatic lathe,Stamping Lathes,Milling/Grinding machine, Drilling/Boring/Honing machine, Planer, Line cutting, Ultrasonic cleaning machine and other advanced production equipments.
File Format	Solidworks,Pro/Engineer,Auto CAD,PDF,JPG
Service	Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Japan and other countries and regions.
Inspection	IQC, IPQC,FQC,QA

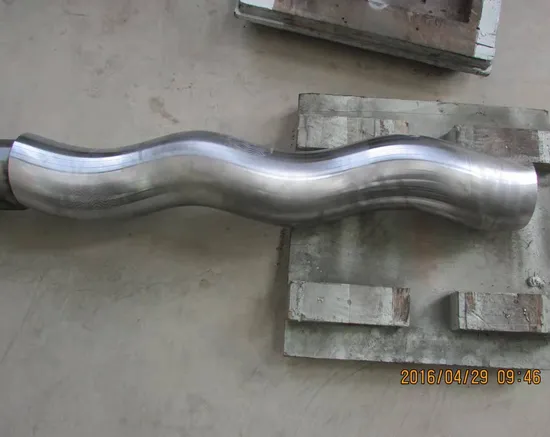

LX320×1500 CNC spiral rotor milling machine is designed and processed by our factory. This machine adopts molding milling cutter to milling screw and screw turning workpiece, mainly suitable for air compressor, refrigerator, industrial pump and other products, large size spiral rotor spiral surface processing.
I. Structural characteristics of machine tools:
1, the machine adopts Guangzhou CNC system (four axis two linkage).
2, the machine adopts integrated bed, "D" type structure. Bed material is high strength cast iron, reasonable structure, good rigidity, high stability. The headcase and tail seat are installed on the work table, and the tail seat can be moved back and forth; The bed saddle is fixed on the bed body, and the bed saddle is equipped with a skateboard, which is locked by a disc spring. The milling head is mounted on a slide plate. The table moves left and right reciprocating through the ball screw.
3, machine tool guide rail using hard rail. Guide rail lubrication using centralized intermittent special lubrication pump lubrication, lubrication in time.
4, the feed shaft (Z axis, X axis) adopts high precision ball screw through servo motor direct drive to achieve no clearance transmission, high transmission accuracy, good positioning accuracy.
5, headstock (axis C) adopt variable tooth thickness worm gear drive, convenient to adjust the clearance. Servo motor direct worm, high precision and accurate indexing.
6, the milling head adopts high power frequency conversion motor, through the synchronous belt + worm gear and worm drive.
7. The feeding mode of tailstock sleeve is hydraulic feeding, which is convenient to remove the workpiece. The overall feeding of tailstock is rack and pinion structure, which is convenient to feed.
8, the milling spindle is A axis rotation, in order to determine the milling spiral Angle, with X, Z and C coordinate linkage, in the case of system programming to achieve automatic processing. A axis rotation using variable tooth thickness worm gear drive. Axis A is locked by disc spring.
9, the machine is equipped with special fixture, the machine is equipped with a special center frame.
10. The machine is equipped with cooling device. Lubrication cooling effect is achieved through forced cooling.
11. The electrical components in the machine tool electrical control cabinet are all purchased from delixi, a well-known brand in China.
FAQ
Q1, How do I send my query?
You can contact us via email, phone, instant messaging (WhatsApp, wechat, Skype).
Q2,If you don't know which model is suitable for your company, please tell us your requirements for the equipment, or you can send us the product drawings, and our engineers can help you choose the most suitable model for you.
Q3,delivery time
The project will be completed within 20 days after receiving the deposit. Please communicate with the sales staff about the specific construction period.
Q4,Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q5,Can your engineers come to help us install and debug the machine?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Q6, If I can't know how to operate. Can your engineer help me programme well on machine?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
Q7,Is there only one model of this device?
The standard processing diameter range of this equipment is 350mm, if you have other processing range, you can negotiate with the sales contact. Length range, we can do from 1000mm to 8000mm, and all are integral cast bed.
Q8, processing efficiency
Our CNC machine tool from the lathe bed casting weight, wide guide rail, large motor power, can use a maximum diameter of 50 round rod milling cutter processing, the maximum cutting depth can reach 40mm, so the processing efficiency is very high.
Q9,What control system does the equipment use
Our standard configuration is Guangzhou CNC system, fanuc and Siemens can also be used, but the price is slightly different, please contact sales for details. Compressor screw milling machine CNC spiral rotor milling machine Cangzhou kangnuo X/Y/Z axis ball screw 3 axis variable Good quality factory directly high precision horizontal miller cnc screw barrel milling machine with X C Z axis Reliable Quality horizontal Bed table spindle servo motor drive Special CNC milling machine for plastic mechanical vulnerable parts screw with center frame Replaceable Tool Shaft Three Rails 800mm Width LXCK350-3000 CNC Screw Milling Machine CNC screw milling machine for plastic mechanical extruder with chip removal machine
