Automatic Heat Transfer Label Roll to Roll Screen Printing Machine

Product Description

Automatic Heat Transfer Label Roll to Roll Screen Printing Machine
Machine Description:
Heat transfer is a good way for branding garment. In the past long time, heat transfers are mainly made by semi-automatic printing machine sheet by sheet in a relatively slow way. To help the manufacturer improve productivity and reduce cost,the automatic heat transfer label printing machine come out.
It is able to continuously print large numbers of heat transfer labels on PET film on roll to roll basis. Printing capacity is 6 times higher than semi automatic printing machine, but need only one operator.
The printing line comprises a unwinder, a printing unit and a hot air dryer. The PET material unwinding, screen printing, drying and rewinding process are conducted at same step. After the roll printing process, we offer post-press machines to cut the roll into sheets or to slit the big roll into small rolls.
The machine can print 1 color, 2 colors or more than 2 colors if necessary. It features a unique automatic registration system with 3 sensors installed to ensure high precision in overprint. Welcome to contact us for a video, we believe you will like it.
Application: RFID, heat transfer label, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.

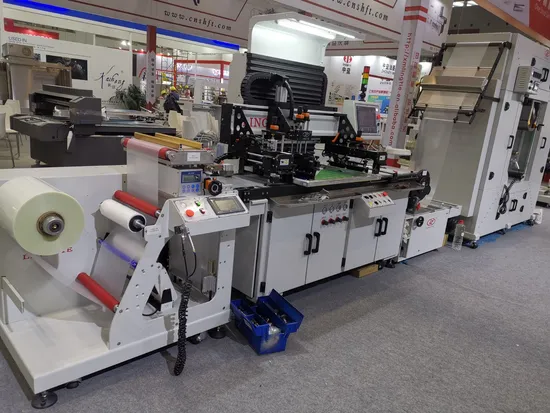

Automatic roll to roll silk screen printing machine includes a feeder, a screen printing unit and a hot air dryer.
Machine Parameters:

Model			LTA-3040		LTA-5060		LTA-6080
Max. Printing Size			300x400mm		500x600mm		600x800mm
Printing Speed			0~5000 print/hr.		0~2500 print/hr.		0~2500 print/hr.
Max. Screen Frame Size			600x800mm		800x1000mm		900x1200mm
Frame Adjusting Variable			60mm		60mm		60mm
Max. Substrate Width			320mm		520mm		620mm
Registration Accuracy			±0.01mm		±0.01mm		±0.01mm
Air Source			0.4~0.6mpa		0.4~0.6mpa		0.4~0.6mpa
Power			220V, 3KW, 15A		220V, 3KW, 15A		220V, 3KW, 15A
Printing Material Thickness			0.02~0.5mm		0.02~0.5mm		0.02~0.5mm
Weight			600kgs		700kgs		950kgs
Overall Dimensions (L*W*H)			7000x1100x1900mm		8200x1200x2000mm		9000x1350x2200mm

Machine Photos:
Vacuum table: fix the PET film during printing process. Automatic register system for screen alignment.
feeder: dust removing, protect film removing, electrostatic eliminating,etc.
inspection station: Timely inspection of printing quality to avoid waste.
Print Head: Good stability, ensure long time use of the machine.
Rewinding Shaft: After printing, through the tunnel oven drying, automatic rewinding at last.
