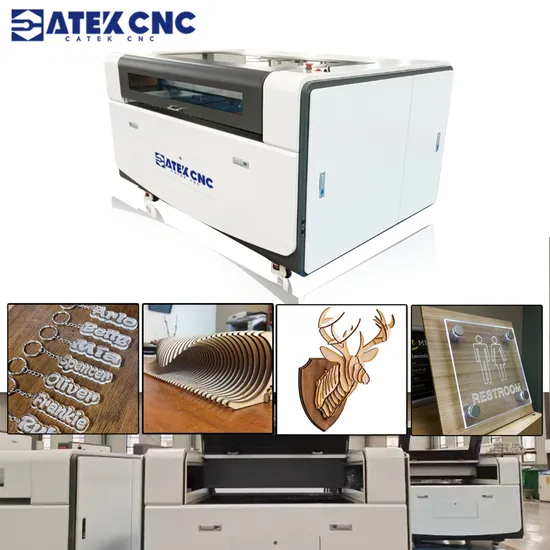

100W CNC CO2 Laser Acrylic Wood Cutter 6090 Engraving Cutting Machine

Product Description

Product Description
Product Parameters

Name	CK-6090-C CO2 laser cutting engraving machine
Working size	600*900mm
Cutting depth	≤ 25mm (according to material)
Laser power	RECI/Yongli AS6 laser tube
Laser type	CO2 glass laser tube
Laser power supply	80W/100W/150W/200W
Engraving speed	1-60000mm/min
Control system	RDC6442S/ RDC6445G RUIDA
Working Table	Up and down table
Laser head	Auto focus and red dot positioning
Protector	XY dust cover protection
Safety system	Three light alarm system+case open working stop system
Air compressor power	Haili 165W
Motor	Stepper motor(Customizable servo motor)
Exhaust fan Power	550W
Transmission mode	Taiwan HIWIN high precision linear square rail,Taiwan HIWIN slider
Cutting speed	1- 10000mm/min
Resolution ratio	≤0.0125mm
Minimum shaping character	letter 0.5mm, Chinese 0.5mm
Cooling type	S&A CW5000 water cooling machine
Support format	JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI
Voltage	110V/220V 50HZ 60HZ
G.W	350KG
Size	1420*1050*1000mm
focusing lens	Import from America II-VI

It can satisfy the large-volume cutting and engraving needs of clothing fabrics, leather, wood, acrylic, paper and other industries and it is widely used in craft gifts, souvenirs, paper-cutting, advertising signs, clothing, furniture and many other industries
Detailed Photos
RECI CO2 laser tube has a delicate spot and strong penetrating power Ruida rdc laser special control system supports various advanced functions
making it more suitable for long-term use such as auto focus and power-off positioning
Red dot positioning and auto-focus laser head ensure a safe distance Imported HIWIN high-precision sliders guide rails and TBI ball screws
between the material and the lens
XY axis fully enclosed dust cover to better protect guide rails and linear S&A cw-5000 water cooling machine enables the machine to work stably in hot
bearings and prevent dust environments
Focusing lens imported from the United States, double size AR coating Ordinary focusing lenses have low transmittance and low laser resistance
and high transmittance 99.5%
Honeycomb workbench + blade workbench dual platforms can be used Ordinary single-blade workbench with single working method
for both cutting and engraving making it more convenient to use The whole machine uses a thickened sheet metal shell and an aviation Simple small laser machine with low efficiency slow speed and low precision
grade aluminum alloy gantry that making it more convenient to control
and easier to use
Company Profile
Jinan Catek CNC Machinery Co., Ltd Catekcnc is a foreign trade subsidiary of Lingrui located in China Jinan, Shandong Province. Lingrui CNC was established in 2006 with atotal investment of 300 million RMB. Since 2006 our company has been deeply cultivating the Chinese market for 17 years and cooperating with well-known factories in China and OEM manufacturing for many foreign trade companies around the world. In 2023,Lingruin invested in the development of the foreign trade market and established Ruisheng CNC committed to providing the mostfavorable and practical digital control equipment to the world.
The company has 12 large-scale production workshops with total area of 100000 square meters. The company's main production equipment adopts world-renowned enterprise brands, and heat treatment processes of the equipment are at the world's leading level. Key components with the overall structure of the bed and the connecting shaft are all self-developed which is effectively ensuring product quality.
The company's products mainly cover various CNC equipment such as CNC woodworking lathes, CNC carving machines, CNC woodworking machining centers, laser fiber cutting machines, CNC marking machines, etc., which are applied in various industries such as wood, stone, metal, synthetic chemical materials, etc. Whether in manufacturing, construction, handicrafts, advertising, or other fields, our mechanical equipment help customers achieve outstanding achievements. We work closely with our customers listening to their voices and needs, constantly innovating and improving to ensure that our products are always at the forefront of the industry. Packaging & Shipping
Our company has 1500+ professional assembly technicians, 300+ professional after-sales teams and 300+ professional sales teams.Our company has a diversified product composition and production equipment in various fields. No matter what your needs are, we can meet with all your needs.
The company has been deeply rooted in China for more than 17 years, serving more than 10000 domestic customers. Factories are involved in various industries and customer satisfaction is 100%. It has become a well-known CNC brand in China. Whether you are a CNC novice or an expert CATEKCNC can meet your any requirements.
As a senior OEM factory has cooperated with many well-known foreign trade companies and shipped equipment to more than 100 countries and regions around the world FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes, we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1) T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
