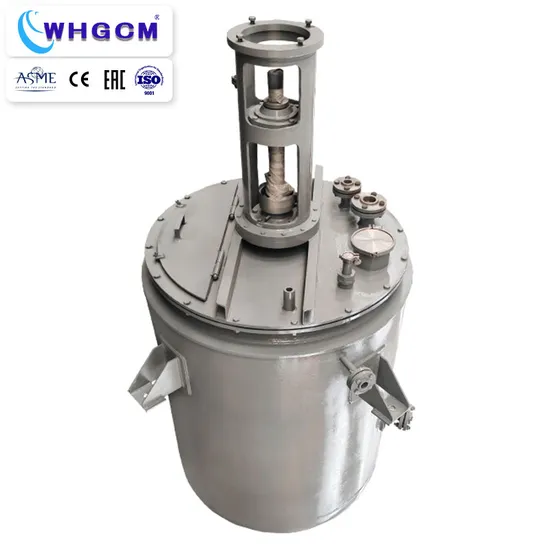

China Factory OEM ODM Customized Ta1+Q345r Steel Stirred Tubular Catalytic Resin Mixing Reactor
| US$4,858.00-8,800.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
21081005~06huizhou1500L
Function
Storage Pressure Vessel, Separation Pressure Vessel, Heat Pressure Vessel, Reaction Pressure Vessel
Application
Mixture
Material
Stainless Steel
Pressure
0.1MPa≤p<1.6MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Low-Pressure
-0.1MPa<P<1.6MPa
Midium-Pressure
1.6MPa<P<10.0MPa
High-Pressure
10MPa<P<50.0MPa
Core Components
Motor, Pressure Vessel, PLC, Gear, Pump, Gearbox,
Certification
ASME-U CE-PED EAC-Coc Saber ISO Epr
Nozzle Ports
All Nozzle Ports Can Be Customized
Automatic Grade
Semi-Automatic
Control System
Pid PLC IoT Dcs Automation Control
Mixing Type
Different Agitators Against Reaction Needs
Sealing Type
Magnetic Seal/Mechanical Seal/Packing Seal
Manufacture License of Special Equipment
A1&A2
Key Selling Points
Industry Reactor
OEM/ODM
Available
Transport Package
Standard
Specification
Standard
Trademark
WHGCM
Origin
Shandong, China
HS Code
8419899090
Production Capacity
1000 Unites Per Year
Product Description
Product Parameters
| Industrial Reactor Technical Parameters | |||||||
| Work Volume (L) | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | 20000 |
| Structure Type | Close type (with man hole) | ||||||
| Design Pressure (Mpa) | Negative 0.1-15 | Negative 0.1-15 | Negative 0.1-15 | Negative 0.1-10 | Negative 0.1-10 | Negative 0.1-10 | Negative 0.1-10 |
| Design temperature | -196~300 ºC | 196~250ºC | |||||
| Mixing Speed | 0~800 r/min | 0~500 r/min | |||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||||
| Motor Power | 5.5 KW | 11 KW | 15 KW | 22 KW | / | ||
| Heating Power | 48 KW | 60 KW | 75 KW | 90 KW | / | ||
| Heating Style | Far infrared electric heating, electric heater with thermal oil bath, jacket circulation with thermal oil/steam/melt salt | Jacket circulation with thermal oil/steam/melt salt | |||||
| Discharging Style | Discharging from bottom, or sampling from kettle lid | ||||||
| Mixer Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||||
| Mixing Style | Impeller, paddle, anchor, turbine, self-suction style, or as per customer's request. | ||||||
| Seal Type | Magnetic Seal / Mechanical Seal / Packing Seal | ||||||
| Contact Material | Contacting material mainly use Cladding Plate of Stainless Steel SS304+Mild Steel Q345R, SS316L+Q345R, SS321+Q345R, or use pure stainless steel; Or use Titanium, Nickel, Zirconium, Hastelloy, Inconel or Monel Cladding Plate, or coating with PTFE or PPL as per customer request. | ||||||
| Kettle Lid Open Port | Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc (safety valve) port, Man hole (Hand hole), Cooling water inlet/outlet port (or Visual Glass Port and other port according to working pressure) | ||||||
| Controller | Equipped with automatic PID or PLC controller, temperature control accuracy ±1ºC; Can display & control Mixing Speed and Heating Temperature; Can adjust heating power for constant temperature, also has self-adjustment function. | ||||||
| Other Accessories | If the user have other special requirements on kettle cover, kettle body openning, internal structure, high and low pressure, stirring paddle and other supporting device (such as refluxing unit, condenser, constant feeding tank, collector, etc) we can manufacture ODM reactors according to users' requests. | ||||||
Company Profile
Certifications
Customer Visit & Showcase
Production Equipment
Packaging & Shipping
FAQ
Pre-Sale Stage
Provide Design Drawing by free and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
1. Working Volume
2. Max Working Temperature
3. Max Working Pressure
4. Reactor inner Contacting material:SS304, SS316L or others?
5.Reactants and property,Whether it is flammable and explosive?
6. With mixer/agitator or not
7.Others more details
Production Stage
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, All Related Test Report, Approval Certificate.
After Sale Stage
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
Training & Installation
Arrange our engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
