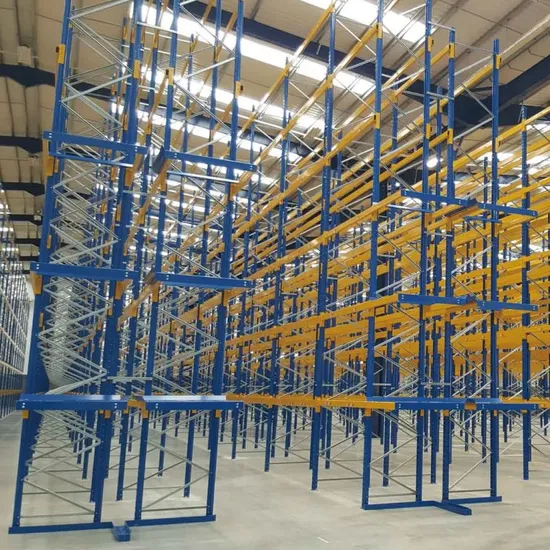

Very Narrow Aisle Heavy Duty Vna Pallet Racking Warehouse Storage Vna Racking

Product Description

Product Description
What Is Very Narrow Aisle Pallet Racking (VNA)?
Very narrow aisle pallet racking condenses standard pallet racking into a smaller area which is conspired to generate a high-density storage system from the vertical level.
Key Features
- Direct access to all the unit loads
- Save up to 40% of space by reducing the work aisles
- Simple assembly, disassembly, and re-adaptation of load levels
- Compatible with any type of goods, by weight or volume
- Allows pallet storage at floor level on the lowest level of the racking.
- Flexible enough to install stacker cranes.
Specification

Standard Size	L2300*D1000*H4500 and size can be customized as your request
Height	1500-8000mm or Customized;
Width/Depth	400-1500mm or Customized;
Length	1500-3200mm or Customized;
Color	In default, the Upright frame is blue, and the Beam is orange, which can be customized.
Raw Material	High-quality Q235 cold-rolled steel
Upright-Section	80*60*1.5/1.8/2.0mm,90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm, etc.
Beam-Section	80*45mm, 100*45mm, 120*45mm, 140*45mm,160*45mm,180*45mm etc.
Layers	Customizable
Pitch Holes	75mm
Loading Capacity	1000~6000kgs or 2200~13200lbs
Surface Treatment	Powder coated
Packaging	Air bubble, Wooden Case, etc.

FAQ
When was your company established?
Vison storage was established in May 2008.
What is the production capacity of your factory?
About 200,00 tons per month.
How long is your delivery time?
Delivery time depends on your package. Normally, the delivery time is 25 - 45 days. Depending on the quantity, we will calculate the most reasonable and fastest production and delivery time.
Contact our sales representative for the most accurate advice.
What products do you export?
Our main export product lines:
- Selective: teardrop/ tradition
- Cantilever: tradition
- ASRS - Radio Shuttle ASRS/ Crane-based ASRS/Four-way shuttle ASRS
- Double deep, Drive-in, VNA.
- Mezzanine
- Steel pallets, Powder coated pallets, Galvanized pallets, Hot dipped galvanized pallets.
- Processing details of mechanical equipment.
To which countries have you exported your storage racks?
Vison storage has started processing and exporting international standard storage racks to global markets such as the US, Switzerland, Australia, Denmark, India, the Netherlands, and Pakistan. , Mauritius and Southeast Asian countries such as Cambodia, Thailand, Indonesia, Singapore, Malaysia,...
What international trade transaction terms do you offer?
EXW/FOB/CIF. In fact, vison storage can handle all international transaction terms. For more information, you can contact us on the exact type of transaction.
Payment terms?
We offer many different types of payment. Depending on actual conditions and order value, Vison storage will proactively offer reasonable payment conditions to customers. Generally, our payment terms are 50% T/T in advance as a deposit, and 50% T/T against a copy of B/L as a balance. If you have any special requirements, please contact our consulting representative directly.
How is the packaging of your products?
Depending on the type of goods, the terms of the agreement, we can use different forms of packaging. Some types are used for packaging such as Corrugated paper, carton boxes, crosstie, pallets, angle steel, plastic film, steel tie, and airbags. With experience in exporting goods to foreign countries, we always ensure the correct packing.
How we visit your factory?
You can contact our representative via email: to arrange a tour and then come directly to our factory for a visit and survey, we always welcome you to visit our factory.
